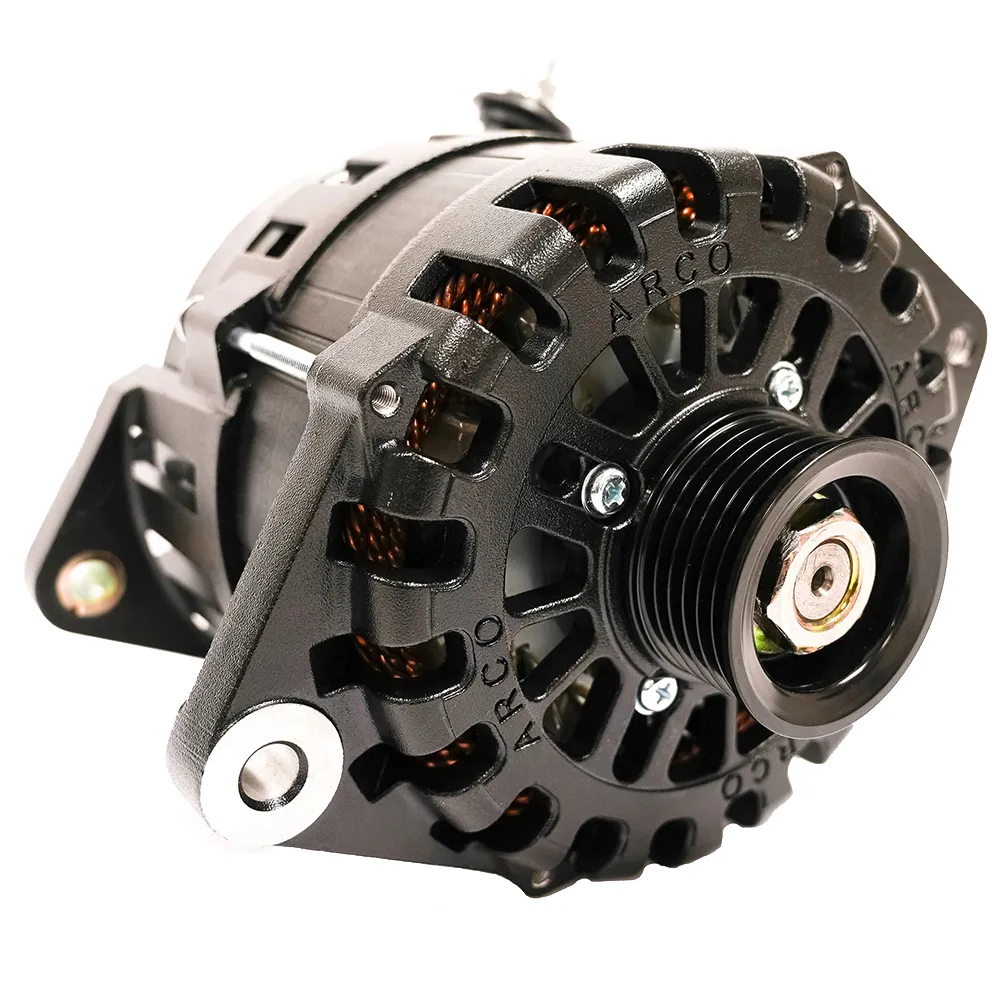

ARCO Marine Zeus A225S High Output Alternator with Regulator

The Zeus A225S is the highest power output alternator in its class, designed specifically for demanding marine environments.

Key Features:

• Engineered for high energy production, ideal for marine, RV, military, and commercial applications.
• Rapid charging capabilities for large battery banks.
• Operates at cooler temperatures, running 8 - 20% cooler than standard alternators due to advanced heat shedding coatings, external rectifier, and dual cooling fans.
• Optimized performance at idle speeds and reduces the need for generators by generating additional power while the engine runs.
• Utilizes E-Coat/Cerakote technology to minimize heat absorption, providing sustained amperage output.
• Compatible with ARCO Zeus Bluetooth alternator regulator for maximum performance and lithium battery charging.
• SAE J1171 Certified and proudly made in the U.S.A.

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 130mm
• Frame Size - Small
• Weight - 12lbs/6.7kg
• Regulation - Internal/External
• Output Voltage - 14.1v (default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, with 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 254 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
