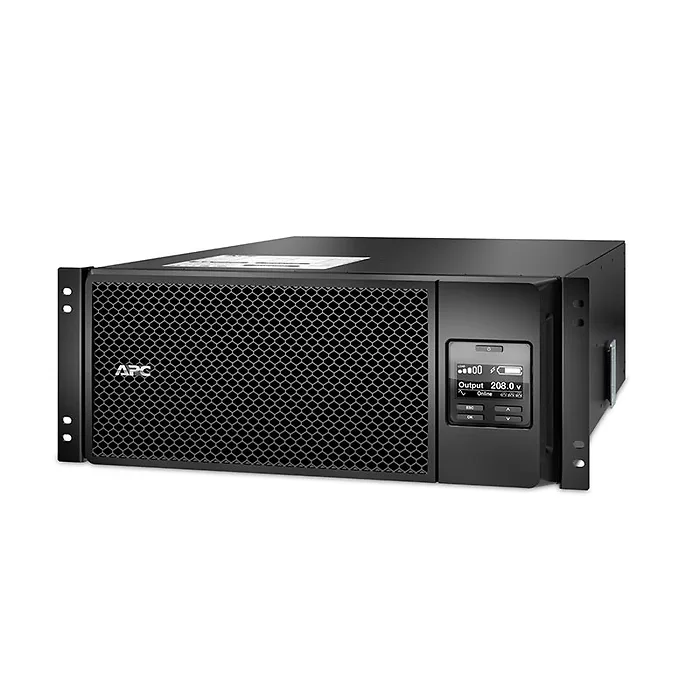

Keep your servers up and running during a power outage with the Smart-UPS SRT 6000VA RM 208V from APC. With a total power output of 6000W, a hardwire (three-wire 2PH + G) input and output, two NEMA L6-20R outlets, and three NEMA L6-30R outlets, the Smart-UPS SRT 6000VA RM 208V offers ideal power protection for servers, voice and data networks, and other business-critical systems.
- Total Outlets: 2 x NEMA L6-20R; 3 x NEMA L6-30R
- Protected Outlets: 2 x NEMA L6-20R (Battery and Surge); 3 x NEMA L6-30R (Battery and Surge)
- USB Charging Ports: None
- SmartSlot Interface: 1
- Data Line Protection: RJ45
- Communications: Serial via RJ45; USB via Type-B
- Emergency Power Off (EPO) Support: Yes
- Topology: Double Conversion
- Surge Energy Rating: 480 Joules
- Maximum Wattage: 6000 W
- Nominal Input Voltage: 208 VAC
- Input Voltage Range: 160 to 275 VAC
- Input Frequency: 50/60 Hz +- 5 Hz (Auto Sensing)
- Nominal Output Voltage: 208 VAC
- Output Voltage Range: 208 to 240 VAC
- Output Frequency: 50/60 Hz +- 3 Hz
- Voltage Distortion: <2%
- Load Capacity: 6000 VA
- Crest Factor: 3:1
- Waveform: Sine Wave
- Chemistry: Lead-Acid
- Recharge Time: 1.5 Hours
- User Replaceable: Yes
- Replacement Battery: APCRBC140
- Hot-Swap Support: Yes
- Operating Temperature: 32 to 104?F / 0 to 40?C
- Operating Humidity: 0 to 95%
- Storage Temperature: 5 to 113?F / -15 to 45?C
- Storage Humidity: 0 to 95%
- Operating Altitude: 0 to 10,000' / 0.00 to 3048 m
- Storage Altitude: 0 to 50,000' / 0.00 to 15,240 m
- Noise Level: 55.0 dBA
- Certifications: CSA, ENERGY STAR, FCC, REACH, RoHS, UL; *as per Manufacturer
- Dimensions (W x H x D): 6.8 x 17 x 28.3" / 172.72 x 431.8 x 718.82 mm
- Weight: 135 lb / 61.23 kg
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SRT6KRMXLT
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC
Product Line:Smart-UPS On-Line
Product Name:Smart-UPS SRT 6000VA RM 208V
Marketing Information:This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (2P+E) input, 2x NEMA L6-20R and 3x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS
Technical Information
Receptacle Type:
Receptacle Detail:
- 1 x Hard Wire 3-wire (2PH + G)
- 2 x NEMA L6-20R
- 3 x NEMA L6-30R
Number of Battery & Surge Outlets:5
Phase:Single Phase
Power Description
Load Capacity (VA):6000 VA
Load Capacity (Watt):6000 W
Input Voltage:
Output Voltage:
Waveform Type:Sine Wave
Surge Energy Rating:480 J
Battery Information
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):2 Minute
Typical Battery Recharge Time:1.50 Hour
Physical Characteristics
Color Family:Black
Product Color:Black
Height:6.85"
Width:17.01"
Depth:28.31"
Rack Height:4U
Form Factor:Rack-mountable
Mounting Preference:Lower
Mounting Location:Front
Weight (Approximate):134.99 lb
Miscellaneous
For Country/Region:United States
Package Contents:Smart-UPS SRT 6000VA RM 208V CD with softwareDocumentation CDInstallation guideRack mounting bracketsRack mounting hardwareRack mounting support railsTemperature probeUSB cableWarranty cardWeb/SNMP management card
Certifications & Standards:ENERGY STAR V2.0 (USA)|FCC part 15 class A|NOM|UL 1778
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT6KRMXLT_ROHS_DECLARATION&p_FileName=SRT6KRMXLTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://download.schneider-electric.com/files?p_Doc_Ref=SRT6KRMXLT_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL:https://download.schneider-electric.com/files?p_Doc_Ref=SRT6KRMXLT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability:https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512017EN&p_File_name=ENVPEP1512017_EN.pdf
California Proposition 65 Warning:WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging:No
Reach Compliance Date:12/10/2025
Sustainable Packaging:No
Product Contributes Saved Avoided Emissions:No
Packaging Contains Recycled Cardboard:Yes
Minimum Percentage of Recycled Metal Content:0
Warranty
Limited Warranty:3 Year
Additional Warranty Information:Battery: 24 month(s)|UPS: 36 month(s)
Product Tags
APC Smart-UPS SRT 6000VA RM 208V - 4U Rack-mountable - 1.50 Hour Recharge - 2 Minute Stand-by - 208 V AC, 240 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Sine Wave - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-20R, 3 x NEMA L6-30R Receptacle(s) - 5 x Battery/Surge Outlet
