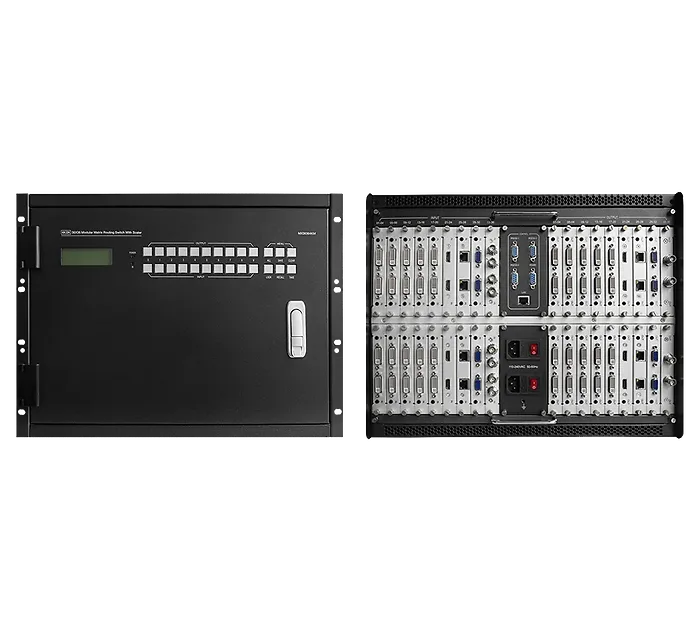

The BZB Gear 32x32 4K Modular Matrix Routing Switch is designed to provide seamless switching and flexible routing of various video signals for high-resolution applications. This versatile switch supports multiple input interfaces, ensuring compatibility with a wide range of devices and formats.

Perfect for professional environments demanding high performance, this switch offers reliable connectivity and easy control options while accommodating diverse installation needs.

• Supports HDBaseT, HDMI/DVI, 3G/HD/SD-SDI, VGA, YPbPr, CVBS interfaces
• HDMI 2.0 port with a maximum resolution of 4K at 60Hz
• DVI-U port compatible with HDMI V1.3A, up to 1920x1080 resolution
• Flexible connectivity options with various signal and interface standards
• Control options: RS-232 direct connection and network control
• Robust ESD protection rated up to 8kV air-gap discharge
• AC power supply, consumption between 60W and 160W
• Operating temperature: 32 - 104°F (0 - 40°C)
• Storage temperature: -4 - 140°F (-20 - 60°C)
• Durable metal housing in silver gray
• Compact dimensions: 483mm x 365mm x 360mm
• Humidity range: 20 - 90% RH (no condensation)
