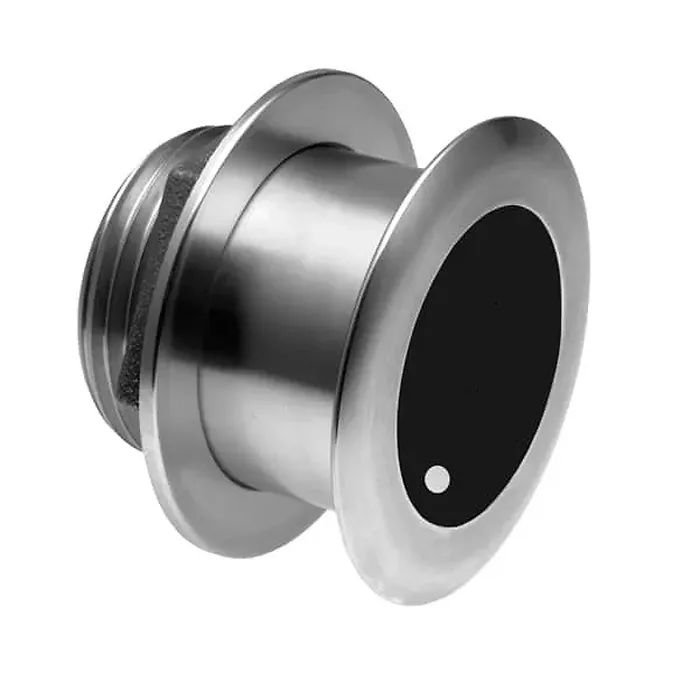

Airmar SS175C-20-H 20° Tilt High CHIRP

Compatible with Garmin 8-Pin

The Airmar SS175C-20-H is designed for optimal performance in shallow waters, featuring a fast-response water-temperature sensor and capable of depth readings up to 304 m (1000'). With a frequency range of 130 kHz to 210 kHz, it delivers superior shallow water performance, enhanced bottom detail, and improved fish target separation. Recommended for boats up to 11 m (36'), it is constructed with stainless steel for compatibility with all hull types.

The low profile design allows for nearly flush installation, which aids in aligning the ceramic element horizontally to maximize echo returns for accurate readings.

• 1 kW power output
• Maximum depth capability of 304 m (1000')
• High Frequency: 130 kHz to 210 kHz with 10° to 6° beamwidth
• 80 kHz total bandwidth from a single transducer
• Excellent shallow water performance
• Compatible with hull deadrises from 16° to 24°
• Constructed from durable stainless steel or optional bronze housing
• Exclusive Xducer ID® technology
