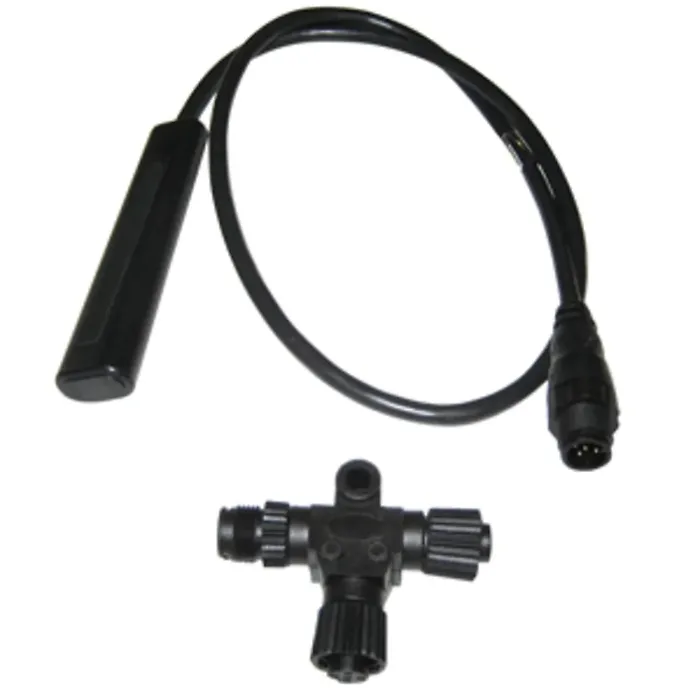

Lowrance NMEA2000 Fuel Data Manager

Model: 000-11522-001
UPC: 9420024129906

• Cable Length: 1.5 ft (.5 m)
• Connects to network with NMEA 2000® engines
• Accumulates date on fuel used from the fuel flow data available from compatible NMEA 2000® engines or engine interfaces
• Supports up to three engines per sensor
• Can only be configured by compatible Lowrance or Simrad displays and gauges

The Fuel Data Manager stores data for fuel used, trip fuel used and seasonal fuel used from a compatible engine or engine interface connected to your NMEA 2000® network. A single Fuel Data Manager can support up to three engines. For installations with more than three engines, use a second Fuel Data Manager sensor.

Fuel Data Manager

Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used. Outputs seasonal, trip and total fuel used.

Features

• Replaces EP-85

• Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used

• Outputs: Seasonal/Trip/Total Fuel Used

• Will report accurate Vessel Fuel Remaining if MFD Fuel screen is maintained at every refuel

• One sensor will monitor up to 3 engines

• Additional Fuel Data Managers can be added for more engines

• Will monitor fuel rates from multiple engines transmitting through a single gateway
