$2890.67

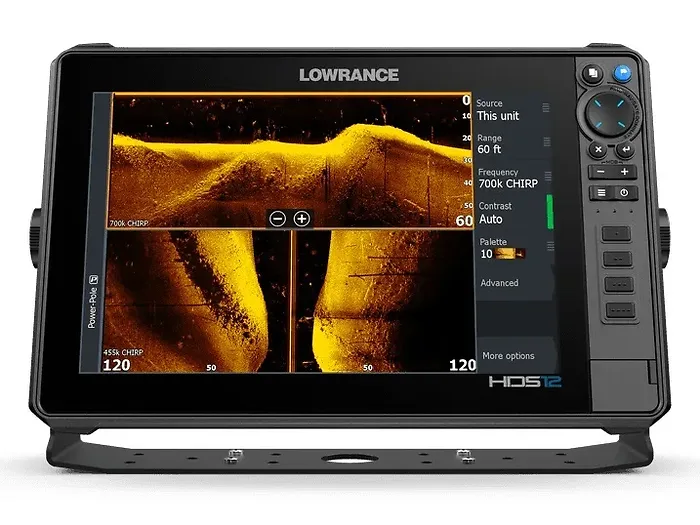

Lowrance HDS12 Pro PRO with C-MAP Discover USA and Canada, No Transducer
Model: 000-16002-001See more and catch more with the new HDS(R) Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget(R) 2 Live Sonar and new, ultra high-definition Active ImagingTM HD. Our clearest sonar ever, Active ImagingTM HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan ImagingTM. FishRevealTM has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget(R) 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget(R) systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS(R) Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great. The SolarMAXTM HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses - a real difference maker on the water. See unmatched clarity on-screen with Lowrance's superior, high-resolution Active ImagingTM HD sonar and ActiveTarget(R) 2 Live Sonar technologies.
Spend more time catching fish and less time finding them with pre-loaded C-MAP(R) charts. Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada. HDS(R) Pro also introduces a new chart overlay option, allowing you to view ActiveTarget(R) Scout Mode or Ghost(R) 360 trolling motor mode directly on the chart screen. For anglers that want to select their own chart, HDS(R) PRO supports a wide range of third-party chart options, including C-MAP(R), Navionics(R), Florida Marine Tracks and more.
HDS(R) PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System, including new Ghost(R) Trolling Motor features like Ghost 360, Orbit Waypoint and Anchor at a Distance. With HDS(R) Pro at the heart of your fishing system, it's easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS(R) PRO offers support for the complete range of top fish-finding technologies - from ActiveTarget(R) 2 Live Sonar and Active ImagingTM HD to touchscreen control of Power-Pole(R) Anchors, Ghost(R) Trolling Motor and more. Expand your system -- taking advantage of radar, autopilot and NMEA 2000(R) compatibility -- and add SiriusXM(R) Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
The expanded options and capabilities of HDS(R) Pro give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS(R) Pro can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active ImagingTM Transducer to enable the new FishRevealTM SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget(R) system to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.
Specifications| Pure White LED | |
| Display Resolution | 1280 x 800 |
| Screen Brightness | >1200 Nits |
| Viewing Angles | 80 deg top/bottom, 80 deg left/right |
| Electrical | |
| Power Consumption max | 3.6A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption min | 2.3A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption typical | 2.3A @ 13VDC with Full Backlight, Sonar on |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12 v DC (10.8-17 V DC) |
| Physical | |
| Dimensions | W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm) |
| Weight | 6.5lb (2.95kg) |
| Compass Safe | 1.6 ft (50 cm) |
| Mounting Type | Panel mount or bracket mount |
| Environment | |
| Humidity | 60 degC, 95% relative humidity (RH) for 18 hours |
| Operating Temperature Range | 5 degF to 131 degF (-15 degC to 55 degC ) |
| Shock Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | 4 degF to 140 degF (-20 degC to 60 degC ) |
| Waterproof rating | IPX7 with card door closed |
| Interface | |
| Touchscreen | Full Multi-touch touchscreen |
| Keypad | 8-way directional keypad |
| User programable keys | 4 |
| Buttons | Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light |
| Connectivity | |
| Bluetooth(R) | Bluetooth(R) 5.2 with support for Bluetooth(R) classic |
| Ethernet Ports | 2 x 100 Mbit, 6 max MFD's on a network |
| Connectivity Wi Fi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| NMEA 2000 | 1x Micro-C |
| SD Card Storage | via Power cable |
| Video | |
| Output | None |
| Composite video | 1 xRCA - single channel via an optional adaptor cable |
| HDMI | 1 port for external input (HDMI(R) 1.4 sink and HDCP) |
| GPS | |
| Correction | DGPS, WAAS |
| GPS Receiver Channels | 16 |
| Position Accuracy | 20m RMS |
