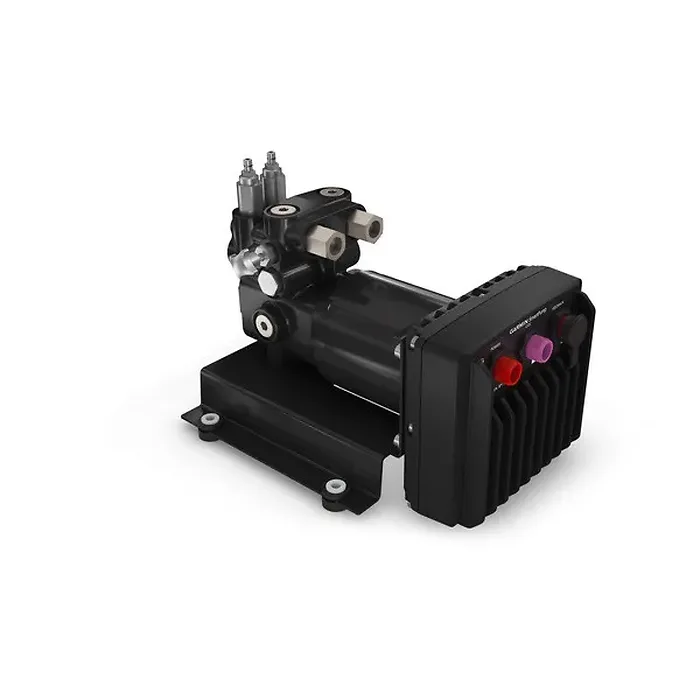

Garmin SmartPump V2
The Garmin SmartPump V2 is designed to provide reliable and efficient operation for most hydraulically steered boats and applications. This advanced pump eliminates the uncertainty of pump sizing and ensures you have the ideal solution for your specific vessel. With enhanced thermal performance, heightened reliability, and reduced power consumption, it offers superior control in a compact size.
Featuring color-coded connectors, installation is made simple and straightforward. The SmartPump V2 is constructed with durable materials, including corrosion-resistant aluminum and nickel-plated components, ensuring longevity even in harsh marine environments.
It supports steering cylinder sizes ranging from 4 to 24 cu in and boasts a quick lock-to-lock time of 7 seconds for cylinders up to 17 cu in.
Specifications| Dimensions (H x W x D) | 6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm) |
| Weight | 16.5 lbs (7.5 kg) |
| Temperature range | From 5°F to 131°F (from -15°C to 55°C) |
| Material | Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy |
| Power cable length | 9 ft (2.7 m) |
| Power input | 10-30 Vdc |
| Fuse | 40 A, blade-type |
| Main power usage | standby - less than 1 A; engaged - 5-10 A; peak - 34 A |
| Flow rate | Configurable from 0 to 2.4 L per minute |
Garmin SmartPump V2 for Hydraulic Steering
