Garmin GT51M-THP Transducer THRU-HULL Pair 12-Pin

MFG No: 010-01966-11
SKU No: KE4WP1HRP5
UPC: 753759152932
MFG. Name: Garmin
Available: 2
Condition: New

$1274.99

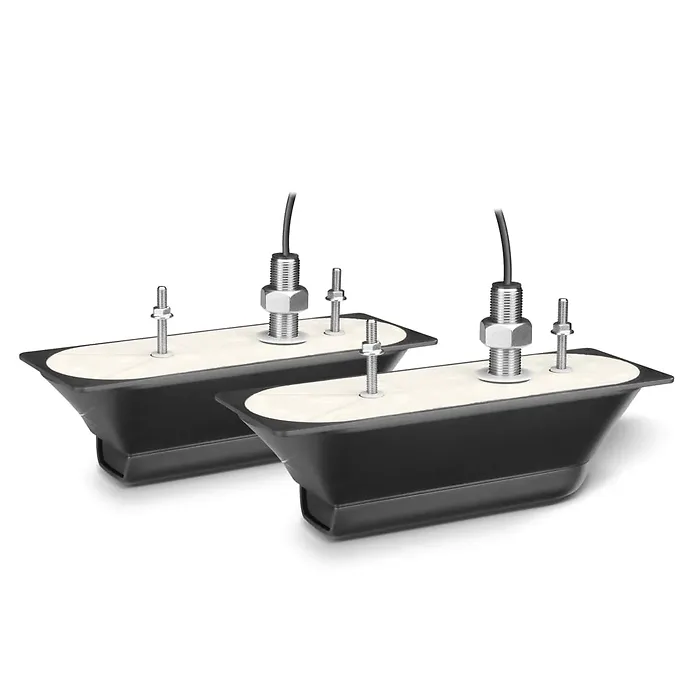

Garmin GT51M-THP Transducer

THRU-HULL Pair 12-Pin

Model: 010-01966-11

Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar with stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.

The CHIRP ClearVu/ SideVu elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.

GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
CHIRP Mid-band
(80-160 kHz)
ClearVu/SideVu CHIRP260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Power
CHIRP Traditional600 W
ClearVu/SideVu500 W
Beamwidth
Traditional24 deg-13 deg
ClearVu/SideVu2.0 degx51 deg @ 260 kHz and 1.4 degx29 deg @ 455 kHz
Maximum depth
Traditional1,800 ft
ClearVu1,000 ft
SideVu750 ft.
Depth/Speed/TemperatureDepth and Temperature
Number of pins12-pin
Cable length5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom anglesUp to 25 deg deadrise

What's in the Box:
  • Port Transducer
  • Starboard transducer
  • Fair Block x 2
  • Isolation plate and busing x 2
  • Mounting Hardware
  • Documentation

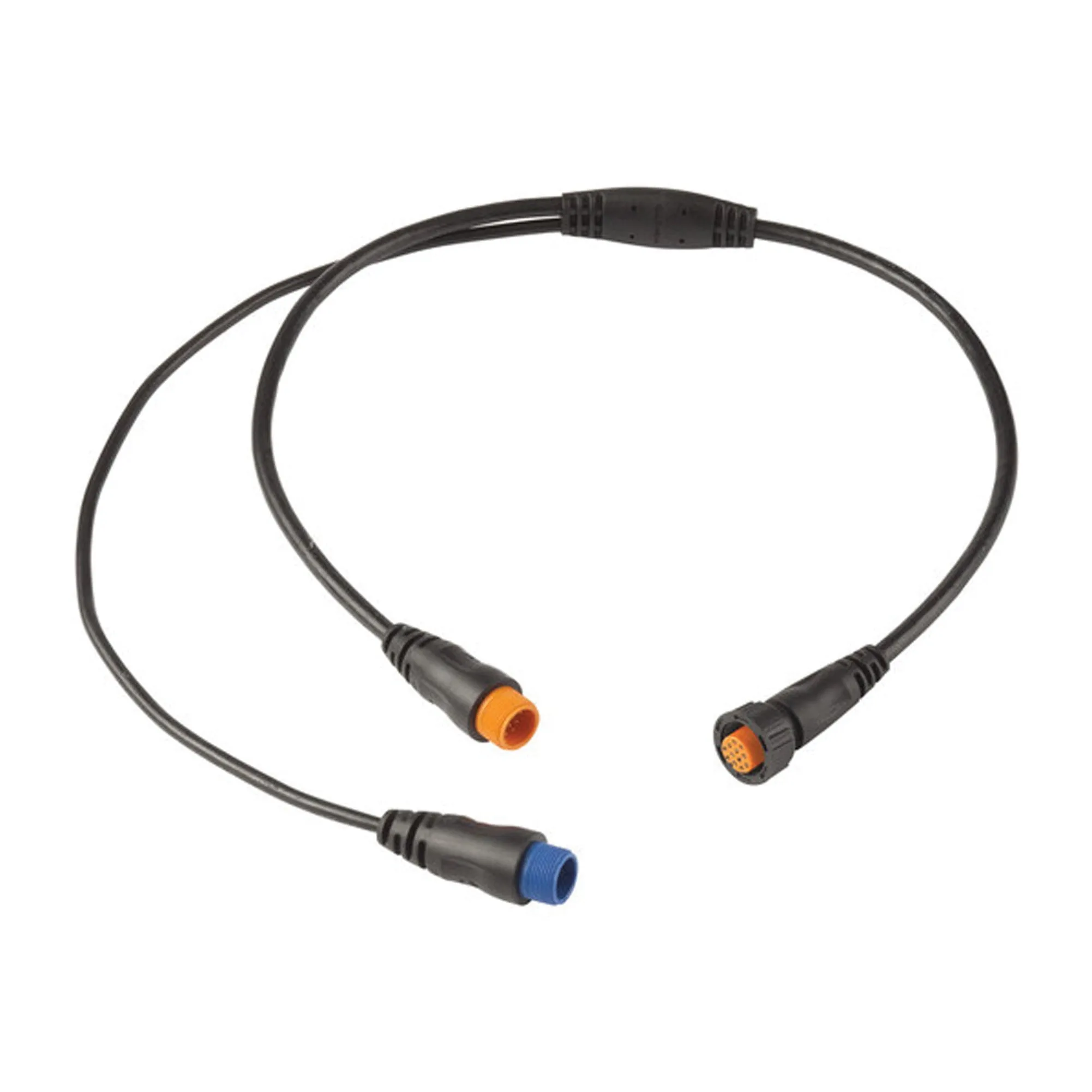

  • Y-Cable

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W
(CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz)
Transducers with Temp (12-Pin)

This thru-hull transducer pair provides ultra-clear sonar pictures of
objects, structure and fish that pass below your boat. These traditional
CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for
depth performance and rough conditions.

The CHIRP DownVü/ SideVü elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 260/455 kHz. The
traditional CHIRP sonar has a power rating of 600 W and operating
frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in
fast-response temperature sensor. For hull deadrises less than 25 degrees.

GT51M-THP includes a 12-pin port/starboard transducers with stainless steel
stems, fairing blocks, Y-cable, bushings, mounting hardware and installation
instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:
  • GPSMAP® 7607xsv
  • GPSMAP® 7608xsv
  • GPSMAP® 7610xsv
  • GPSMAP® 7612xsv
  • GSD™ 25 Premium Sonar Module
