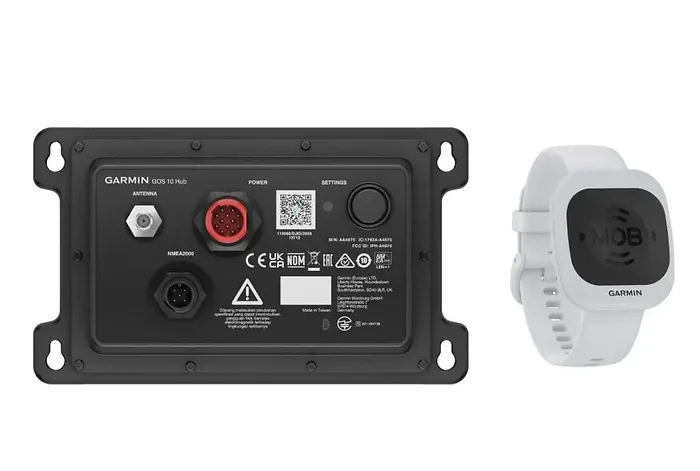

Garmin Onboard System Hub and One Tag

Model: 010-02908-00

• TAGS ARE WORN ON WRIST, CARABINER OR KEY RING FLOAT
• TAGS ARE DESIGNATED AS EITHER CAPTAIN OR PASSENGER
• SET MOB TAG AS CAPTAIN TO ENABLE ENGINE CUTOFF
• TEMPORARILY UNPROTECT TAGS WITH EASE
• THE GOS 10 HUB INCLUDES A LOUD EXTERNAL ALARM
• TAG BATTERY LIFE EXCEEDS A SEASON OF TYPICAL USE

Built so you can move freely and boat confidently, the Garmin OnBoard system uses wireless tags instead of traditional tethered cords — integrating with your compatible Garmin chartplotter.

CAPTAIN TAG: Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter and an audible alarm on the MFDs and hub.

WIRELESS: WIRELESS: The wearable MOB tags are part of a wireless MOB system, letting you move untethered while still being monitored.

PASSENGER TAG: Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFDs and hub.

ENGINE CUTOFF SYSTEM: Should a captain tag trigger an MOB event, the system will cut power to the engines — letting the captain return to the vessel.

CAPTAIN OR PASSENGER TAGS: Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger, changing their MOB action.

WAYPOINTS: When paired to your compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.

AUDIO ALARM: The GOS 10 hub includes a loud external alarm, alerting you to a MOB event.

PAIR MULTIPLE TAGS: Provide peace of mind for up to 8 tags at a time.

VAST COMPATIBILITY: This product will work with any boat that has an engine cutoff switch.

Specifications

General
Number of tags supported	8 simultaneous passengers and captains
User interface	Compatible Garmin chartplotter
MOB alarm	External beeper and MFD alert
Engine cutoff	Yes
View MOB details on MFD	Yes
View tag status on MFD	Yes (battery life, signal strength, protection status)
Manage tags on MFD	Yes (arm/disarm, captain/passenger)
Wireless engine kill	Yes
GOS Hub
Dimensions (HxWxD)	91.55 mm x 155.12 mm x 48.47 mm
Weight	171.7 g
Wireless range	66 ft (up to 20 m)
Supply voltage range	10-32 V
Operating temperature range	-15 C to 70 C
Typical power consumption	50mA @ 12 V or 0.6 W
NMEA 2000 LEN	1
Engine compatibility	Inboard, outboard, sterndrive from all major manufacturers
Engine interface	Hardwired, in-line connection to ignition harness
Number of engines supported	Up to 4 close-to-stop or 2 open-to-stop engines
Water rating	IPX6 and IPX7
Compass-safe distance	5 cm
MOB Tag
Dimensions (HxWxD)	43.94 mm x 38.60 mm x 11.96 mm
Weight	21.5 g
Wireless range	66 ft (up to 20 m)
Battery type	CR 2032 coin cell
Battery life	> 1,200 hours of connected time
View tag status on MFD	Yes (battery life, signal strength, protection status)
Water rating	IEC 60529 IPX8 (5 ATM)
Attachment	Wrist strap or carabiner

What's in the Box:

• GOS 10 Hub
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000 tee and 6 ft drop cable
• White wireless MOB tag
• CR2032 coin cell battery
• White 20 mm quick release band
• Carabiner with 20 mm quick release attachment
• Floating foam keychain
• Installation hardware
• Documentation
