Lumishore ORA TIX404 Thru-Hull Mount Underwater White LED Bronze Housing 12/24vDC

Name: 010-04467-00 Lumishore ORA TIX404 Thru-Hull Mount Underwater White LED Bronze Housing 12/24vDC
Brand: Garmin
SKU: WUH4QLJEY2
Price: 1188.01 USD
Availability: InStock

MFG No: 010-04467-00
SKU No: WUH4QLJEY2
UPC: 753759367169
MFG. Name: Garmin
Available: 4
Condition: New

$1188.01

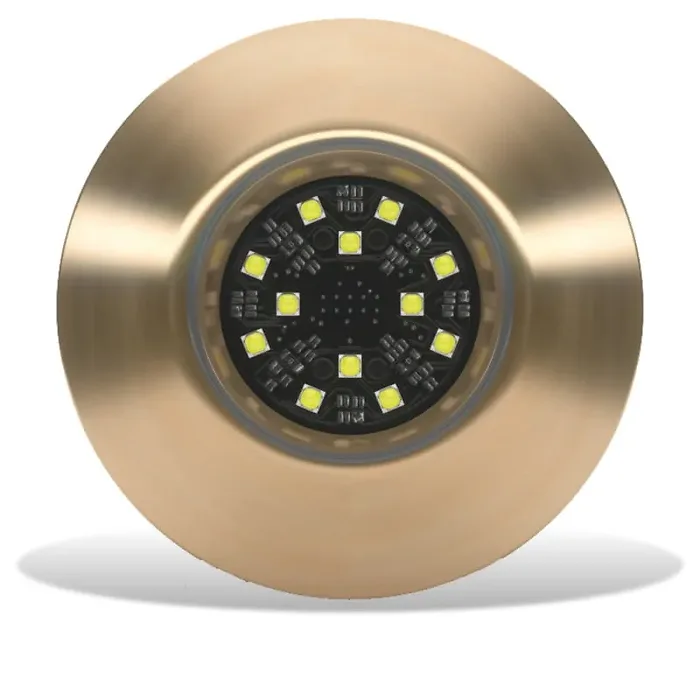

Lumishore ORA TIX404 Thru-Hull Mount Underwater White LED Bronze Housing 12/24vDC

Model: TIX404

The TIX404 packs a powerful 5,100 fixture lumens into a compact, low profile interchangeable thru-hull, with an ultra-wide 110 deg beam angle.

Available in single color white.

TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.

Easily controlled by a standard on/off switch.

Suitable for transom, side and bottom mounting.

Specifications
AVAILABLE LED COLORS

SINGLE COLOR (WHITE)
LUMENS	11,475
VERIFIED FIXTURE LUMENS (WHITE)	5,100
NUMBER OF HIGH POWER LEDS	WHITE - 12 x 10W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	110 deg
DRIVER	INTERNAL DRIVER
SUPPLY VOLTAGE	10.5-31 V DC
MAX CURRENT DRAW	4.0 A / 2.0 A
HOUSING TYPE	MARINE BRONZE BODY, BOROSILICATE GLASS LENS
USER CONTROL OPTIONS	ON/OFF SWITCH
WARRANTY	3 YEARS
