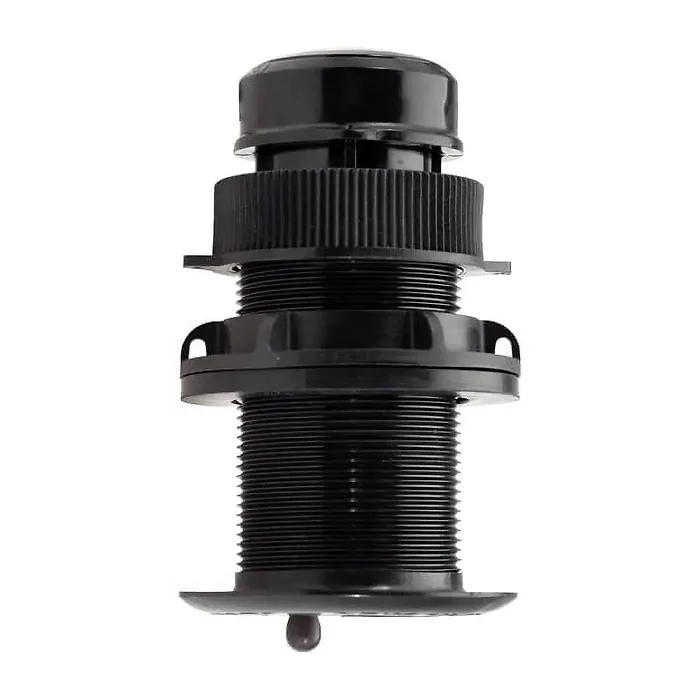

Garmin 010-11051-20 DST810 Airmar Smart Transducer Plastic Thru Hull

Name: 010-11051-20 Garmin 010-11051-20 DST810 Airmar Smart Transducer Plastic Thru Hull
Brand: Garmin
SKU: U8ZURITCQP
Price: 380.54 USD
Availability: InStock

MFG No: 010-11051-20
SKU No: U8ZURITCQP
UPC: 753759260989
MFG. Name: Garmin
Available: 5
Condition: New

$380.54

Garmin DST810 Smart Transducer

Model: 010-11051-20

5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
Integrated attitude sensor for heel and trim benefits sailing and power boats
Wireless connectivity to Airmar's CAST App has new user-friendly benefits:
Calibrate the DST810 in a simple, intuitive way regardless of the instrument brand or model that is on board
Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range
Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
Enable and disable PGN's and set offset and output rates

For a product to be considered "breakthrough," it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar's CASTTM App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.

Besides water temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar's powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.

All speed calibrations and NMEA configurations are stored in the DST810 sensor-not in the displays.

Specifications
Acoustic Window

Urethane
Hull Deadrise	Up to 22 deg
Data Update Rate	Depth: 1X/second
Attitude Accuracy	+/- 1 deg nominal after sensor calibration
Depth Frequency	235 kHz
Minimum Depth Range	0.5 m (1.6 feet)
Maximum Depth Range	Up to 100 m (330 feet)-NMEA 2000(R)
Speed Range	Up to 45 knots
Pressure Rating	3 m (10 feet)
Pulse Rate	20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Supply Voltage	9 VDC to 16 VDC-per NMEA 2000
Supply Current	<200 mA-per NMEA 2000(R)
Wireless Protocol	Bluetooth Low Energy (BLE)
Wireless Range	Up to 30 feet depending on mount location
Standard Cable Length	6 m (20 feet) DeviceNet-NMEA 2000(R)
Temperature Sensor Accuracy	+-0.5 degC (+-1.8 degF)
Temperature Sensor Range	-10 degC to 40 degC (14 degF to 104 degF)
NMEA 2000 Load Equivalency Number (LEN)	3

Airmar DST 810 Smart Transducer - 0° Degree

This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330’ and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.

Wireless BLUETOOTH® connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10x44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.
