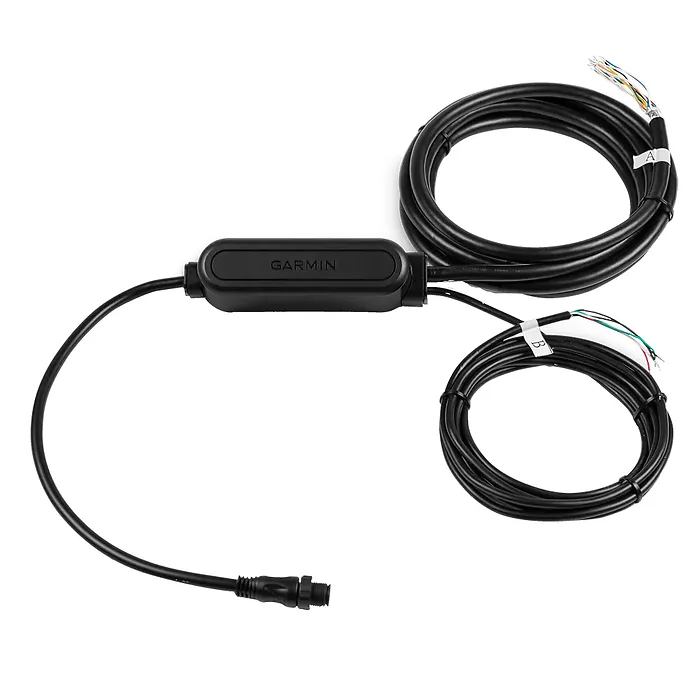

GNA 10 Jog Lever Adapter

Connect a jog lever to the Garmin Reactor 40 autopilots on displacement hull boats using the Garmin GNA 10. This rugged control allows for simple steering adjustment by moving the jog lever left or right to change heading hold, or utilizing the Power Steering mode for rudder movement without autopilot intervention. The GNA 10 can also connect to a button and LED light to switch between heading hold and standby modes. Note that the jog lever, button, and LED light are not included.

Specifications:

• Cable length: 2.8 meters
• Water rating: IPX7
• NMEA output: NMEA 2000
• NMEA 2000® LEN (Load Equivalency Number): 5 (250mA @ 9VDC)
• Operating temperature: -20C to 75C
• Supply voltage: Powered by NMEA 2000 bus, 9-32V

Supported Jog Levers:

• Kobelt 7170
• Jastram JO100/JO300
• Simrad S35 (includes built-in button and LED status)
• Not compatible with two-speed jog levers with multiple switches

Supported Button Types:

• DPST OFF-MOM (no diode needed) or
• SPST (requires diode)
• Max current of 5mA, max voltage of 12V

Supported LED Types:

• LED lights with a current draw of 20mA or less

The GNA 10 requires both a compatible Garmin autopilot and Garmin display. It is designed exclusively for displacement hull powerboats and is not suitable for planning hull boats or sailboats.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Connects jog lever to Reactor 40 autopilots
• Power Steering mode for manual rudder control
• Compatible with select jog lever models
• IPX7 water rating for durability
• Powered by NMEA 2000 bus for easy installation
