Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

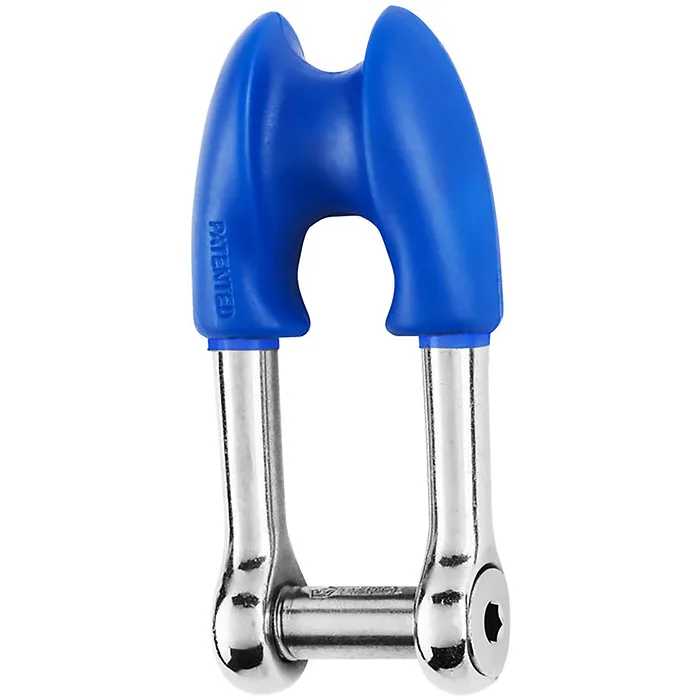

10mm Thimble Shackle with Allen Head Pin - Stainless Steel

Product Overview:

The 10mm thimble shackle is designed with an allen head pin forged in high-quality 316L stainless steel. This innovative design allows for easy rope splicing without the need for an additional thimble and ensures that the pin remains secure with its captive feature.

Applications:

• Ideal for mainsheet halyards
• Maximum rope size: 16 mm

Specifications:

• Materials: Grade 316 stainless steel
• Working Load: 3350 lb (1520 kg)
• Breaking Load: 11020 lb (5000 kg)
• Weight: 0.313 lb (142 g)

Dimensions:

• A: 2 1/64" (51 mm)
• B: 25/32" (20 mm)
• C: 25/64" (10 mm)
• D: 25/32" (20 mm)
• D diameter: 25/64" (10 mm)
• E: 5/16" (8 mm)
• F: 3 25/32" (96 mm)
• G: 1 39/64" (41 mm)

Note: The working load limit (WLL) for industrial applications is calculated as the breaking load divided by a safety factor of 5. The working load (WL) is intended for nautical applications.

*Sold individually

• Crafted from durable 316L stainless steel
• Captive pin design prevents loss
• Allows rope splicing without additional thimble
• High working and breaking loads for safety
