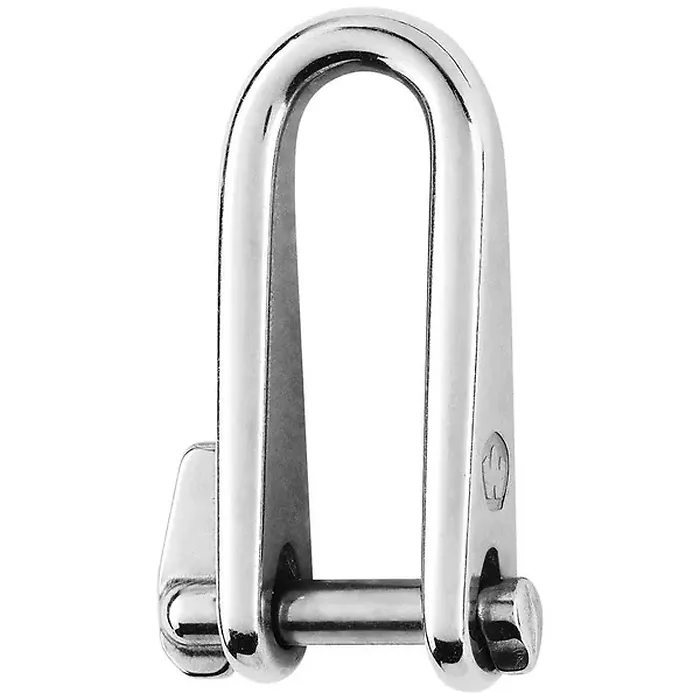

Key Pin Shackle - Diameter 6mm - 1/4"

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1140
• Breaking load (lb) 3300
• Weight (lb) 0.106

Dimensions (see 2nd image):

• A (inch) 1-49/64"
• B (inch) 5/8"
• C (inch) 15/64"
• D (inch) 33/64"
• D diameter (inch) 15/64"
• E (inch) 5/32"
• F (inch) 2-23/64"
• G (inch) 1-29/64"
