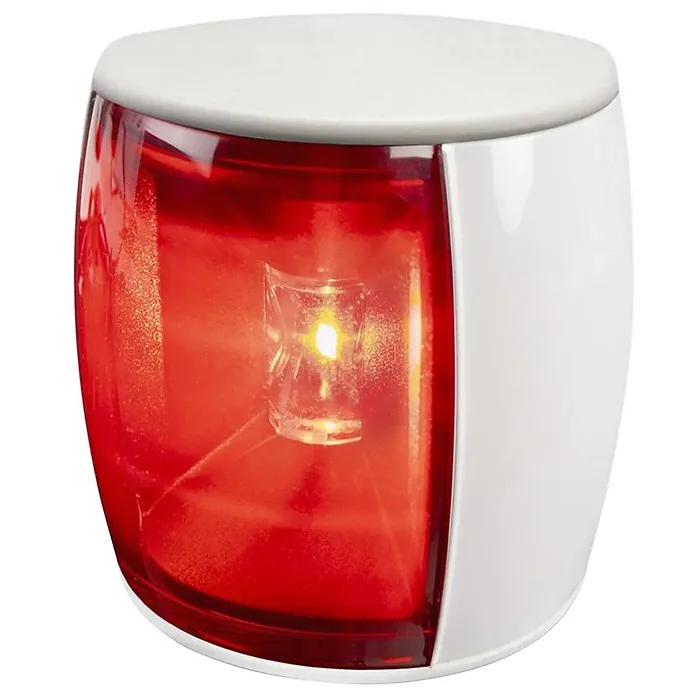

NaviLED PRO Red Lens Navigation Lamp - 3NM

This NaviLED PRO port navigation lamp meets the requirements for vessels over 50 meters. The NaviLED® PRO lamps are trusted globally on commercial, military, and recreational vessels, providing reliable and efficient illumination.

Ultra-Low Current Draw

This lamp consumes less than 3.2W, ensuring energy efficiency without compromising performance.

No Bulbs, No Maintenance, Extremely Long Service Life

Utilizing advanced Hella marine LED technology, the NaviLED® PRO lamps are designed without filaments, making them shock- and vibration-proof for dependable safety in demanding conditions.

Multivolt™ 9-33V DC

The advanced electronics included in this lamp guarantee reliable illumination and protection against lamp damage, even in instances of voltage fluctuations and low battery situations.

Fully Sealed for Life. IP 67 Certified

Each NaviLED® PRO lamp is a fully sealed unit, built with high-impact housings to withstand the harshest marine environments. The ultra-heavy-duty BSH versions utilize high-tech Grilamid® lenses, providing superior strength in extreme conditions.

Pre-wired with 2.5M of Twin-Core Marine Cable

This lamp is equipped with high-quality cable assemblies to facilitate time-saving, completely sealed installations.

Specifications:

• Lamp Type: Port navigation
• Lens Color: Red
• Housing Color: White
• Material: High impact resistant acrylic lens
• Minimum Visibility: 3 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with 2.5M of twin-core marine cable
• Operating Voltage: Multivolt™ 9-33V DC
• Voltage Protection: Spike protected to +500 volts; reverse polarity protected to -700 volts
• Power Consumption: Less than 3.2W combined
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 250g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

• Red lens for clear navigation marking
• Energy-efficient with ultra-low current draw
• No maintenance needed due to LED technology
• Built-in multivolt technology for voltage stability
• Completely sealed and IP 67 certified
• Durable housing for marine applications
• Pre-wired for easy installation
