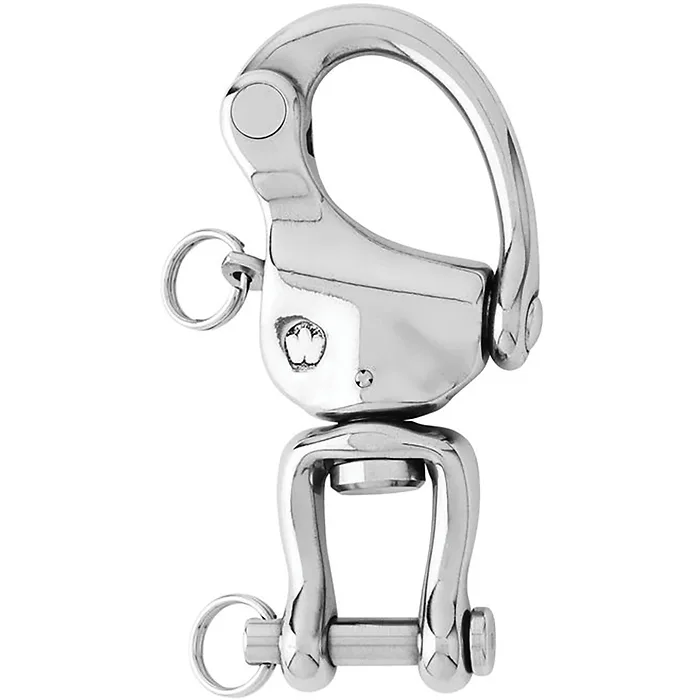

Wichard HR Snap Shackle with Clevis Pin Swivel - 120mm

This high-quality snap shackle is designed for both nautical and industrial applications, offering exceptional strength and reliability. Made from Grade 17.4 PH stainless steel, it ensures long-lasting performance even under extreme conditions.

Key Features:

• Forged construction for durability and strength.
• Swivel eye allows for free rotation.
• Captive plunger pin to prevent detachment.
• High working and breaking loads for safety.
• Easy operation with a lanyard attachment option.

Specifications:

• Working Load: 5290 lb (2400 kg)
• Breaking Load: 15430 lb (7000 kg)
• Weight: 0.919 lb (417 g)

Dimensions:

• Overall Length: 4 23/32" (120 mm)
• A: 1 1/32" (26 mm)
• B: 1 1/16" (27 mm)
• C: 45/64" (18 mm)
• D diameter: 7/16" (11 mm)

• HR Forged snap shackle made of Grade 17.4 PH stainless steel.
• Free rotation via the swivel eye for ease of use.
• Captive plunger pin design to avoid accidental detachment.
• Superior working load capacity for reliability.
• Designed for easy access with an option to attach a lanyard.

Product Tags

Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"
