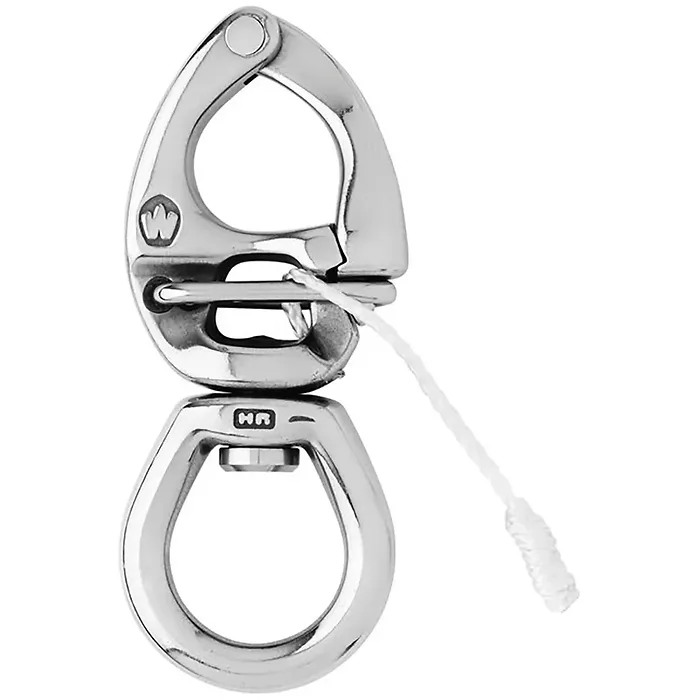

HR Quick Release Snap Shackle - 145mm Length

Overview: This quick release snap shackle is designed for ease of use and maximum strength, making it ideal for various nautical applications.

Key Features:

• HR forged (17.4 PH) stainless steel for durability
• Easy opening by simply pulling the lanyard
• Versatile design suitable for attaching multiple lines
• Exceptional working and breaking loads
• Free rotation capability due to integrated swivel

Applications:

• Ideal for spinnaker operations
• Perfect for attaching several lines such as spinnaker sheets

Specifications:

• Working load: 6170 lb (2800 kg)
• Breaking load: 13880 lb (6300 kg)
• Weight: 0.873 lb (396 g)

Dimensions:

• A: 1 3/16" (30 mm)
• B: 1 25/64" (35.5 mm)
• Length: 5 45/64" (145 mm)

Important Notes:

• Working Load Limit (WLL) based on a safety factor of 5 times the breaking load
• High Resistance (HR) construction

*Sold as an Individual

• Constructed from HR forged 17.4 PH stainless steel
• Quick-release mechanism for easy operation
• Designed for multiple line attachments
• Superior working and breaking load capacities
• Incorporates a swivel for unobstructed rotation
