Blue Sea 3116 - SMS Panel Enclosure w/ELCI (30A) and 3 Blanks - 120V

Name: 03116 Blue Sea 3116 - SMS Panel Enclosure w/ELCI (30A) and 3 Blanks - 120V
Brand: Navico Group
SKU: BE73L74JC1
Price: 595.87 USD
Availability: InStock

MFG No: 03116
SKU No: BE73L74JC1
UPC: 632085031169
MFG. Name: Navico Group
Available: 2
Condition: New

$595.87

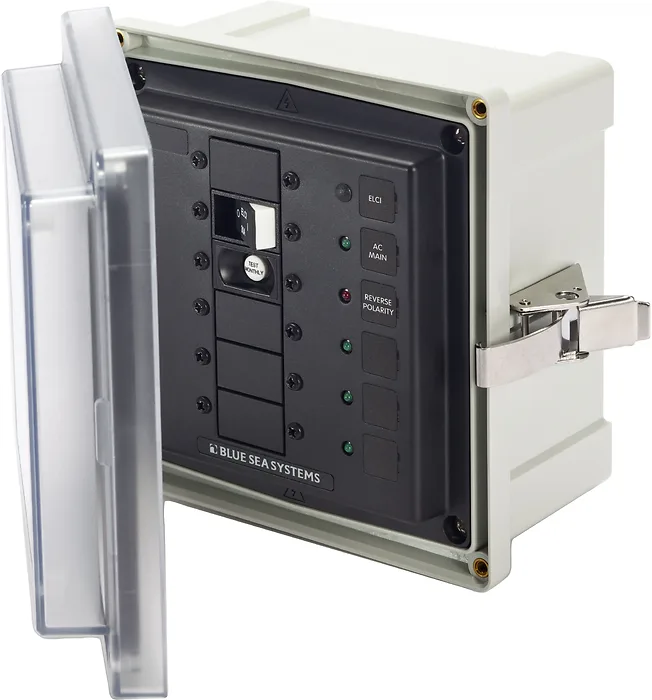

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions

Model: 3116-BSS

Includes one 120V AC / 30A ELCI Main and three blank positions
Blank apertures for custom breaker loading
Glass filled polycarbonate mounting box
Glass filled polycarbonate mounting box
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
Stainless steel mounting hardware included
Includes waterproof glands
LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Specifications
Minimum Operating Temperature

-40 deg C
Maximum Operating Temperature	85 deg C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0 x 6.0 in x 4.0 in
Exterior Overall Dimensions	7.6 in x 7.4 in x 4.7 in
Mounting Hardware	1/4 in Diameter
