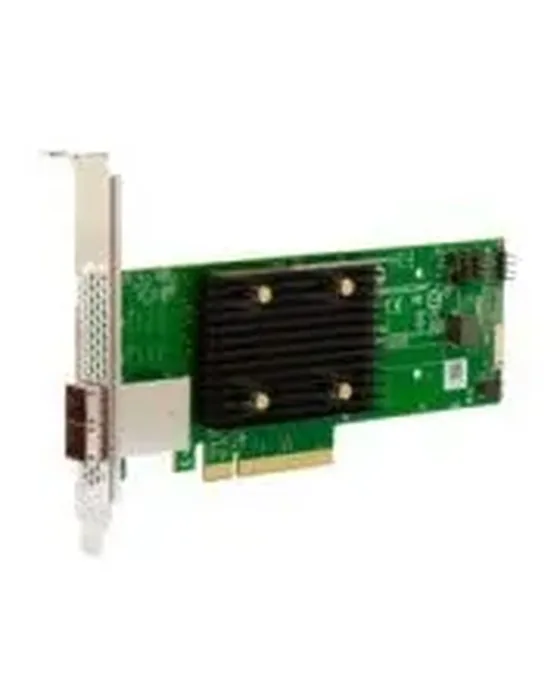

The LSI Logic 9500-8e is a high-performance 12Gb/s tri-mode RAID controller designed to support SAS, SATA, and NVMe devices in one unified solution. With PCIe 4.0 interface and support for up to 1024 SAS/SATA or 32 NVMe devices, this controller is ideal for high-throughput data applications and scalable enterprise storage environments. Backed by robust management tools like LSI Storage Authority and StorCLI, it offers full compatibility with major operating systems and delivers enterprise-grade reliability and performance.

• Model: LSI 9500-8e (05-50075-01)

• Device Support:

  • Up to 1024 SAS/SATA devices

  • Up to 32 NVMe devices

• Interface:

  • PCI Express 4.0, x8 lane

• External Ports:

  • 2 x SFF-8644 (x4 lanes each)

• I/O Controller:

  • SAS3808

• Tri-Mode Support:

  • SATA, SAS, and PCIe/NVMe

• Typical Power Consumption:

  • 6.12W

• Operating Temperature:

  • 0°C to 55°C (32°F to 131°F)

• Operating Humidity:

  • 20% to 80%, non-condensing

• Form Factor:

  • Full-height and low-profile brackets included

• MTBF (Mean Time Between Failures):

  • 5,000,000 hours at 40°C

• OS Compatibility:

  • Microsoft Windows

  • VMware vSphere/ESXi

  • Red Hat Enterprise Linux

  • SuSE Linux

  • Ubuntu Linux

  • Citrix XenServer

  • CentOS, Debian, Oracle Linux, Fedora, FreeBSD

• Management Software:

  • LSI Storage Authority (LSA)

  • StorCLI (Command-Line)

  • HII (UEFI Human Interface Infrastructure)

• Regulatory Certifications:

  • FCC, CE, VCCI, RoHS, WEEE, ICES-003, RRA, CNS 13438, EN/IEC/UL 60950

• Product Dimensions:

  • 12 x 6 x 10 inches

• Weight:

  • 6.00 lbs

• Warranty:

  • 3 Years Manufacturer Warranty
