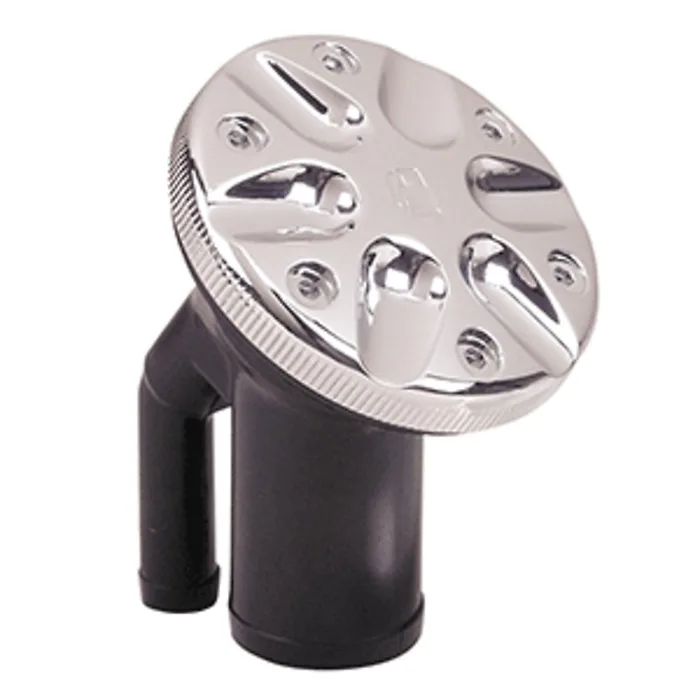

0590 Vented Fill f/1-1/2" Hose - Angled Neck - Chrome

• Chrome Plated Bronze Cap
  • Black Polymer Body
  • Stainless Steel Bead Chain
  • Integral Tank Vent with Flame Arrestor and Anti Surge Valve (on diesel only)
  • Deck Plate Key Not Required
  • *Note: Consider using the Mounting Ring (Fig. 0540DPRBLK) for all installations. DP package includes mounting ring.

Technical Information

• For Hose Size: 1-1/2"
• For Vent Hose: 5/8"
• Mounting Hole Dia.: 2-1/8"
• O.D. Flange: 3-3/8"
• Neck Length: 2-7/16"
• Screw Size: #8

0590 Vented Fill f/1-1/2 Hose - Angled Neck - Chrome

• Chrome Plated Bronze Cap
  • Black Polymer Body
  • Stainless Steel Bead Chain
  • Integral Tank Vent with Flame Arrestor and Anti Surge Valve (on diesel only)
  • Deck Plate Key Not Required
  • *Note: Consider using the Mounting Ring (Fig. 0540DPRBLK) for all installations. DP package includes mounting ring.

Technical Information

• For Hose Size: 1-1/2
• For Vent Hose: 5/8
• Mounting Hole Dia.: 2-1/8
• O.D. Flange: 3-3/8
• Neck Length: 2-7/16
• Screw Size: #8
