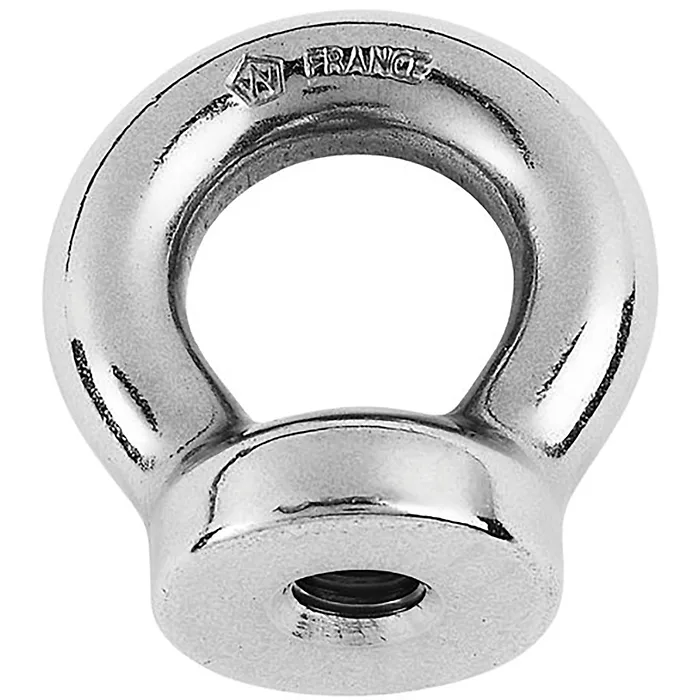

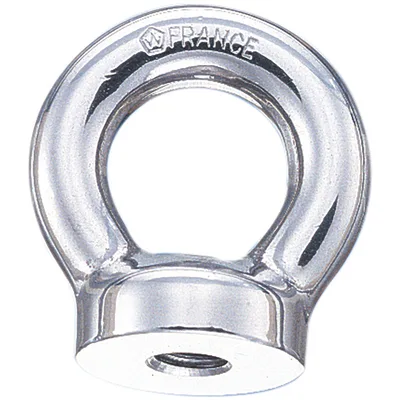

M10 x 150mm Eye Nut - 8mm Forged Stainless Steel

Overview:

This forged eye nut is designed for high-performance fastening applications. Constructed from durable 316L stainless steel, it offers exceptional strength and longevity.

Applications:

• Ideal for various fastening needs
• Suitable for towing applications
• Perfect for attaching waterskiing lines

Specifications:

• Material: 316L stainless steel
• Breaking Load: 9920 lb (4500 kg)
• Weight: 0.108 lb (49 g)

Dimensions:

• Thread Size: M10 x 150 mm
• Width (B): 43/64" (17 mm)
• Height (C): 1 27/64" (36 mm)
• Thickness (D): 5/16" (8 mm)
• Inner Diameter (E): 55/64" (22 mm)

Important Notes:

The Working Load (WL) is specified for nautical applications. For industrial use, the Working Load Limit (WLL) is 1/5 of the breaking load, ensuring a safe factor of 5.

*Sold individually.

• Single-piece forged construction for enhanced strength
• Exceptional breaking loads for safety and reliability
• Available in different sizes to meet diverse needs
