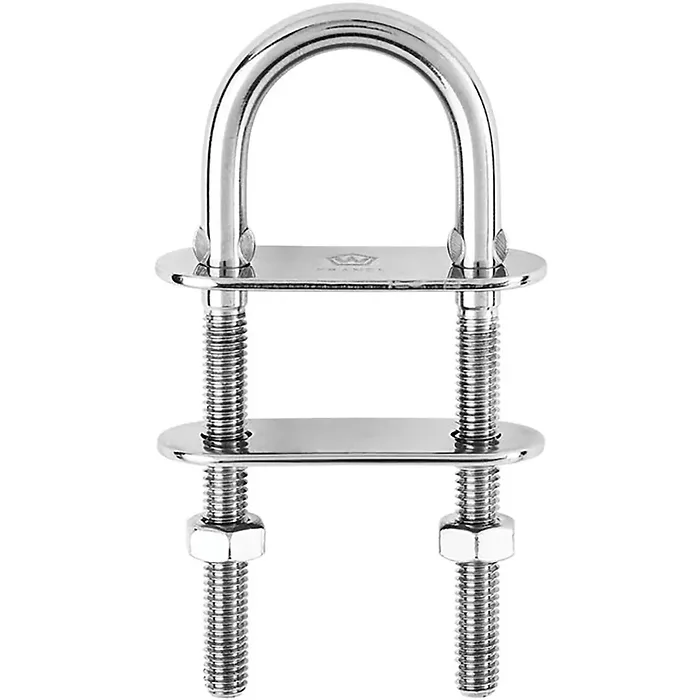

Stainless Steel U-Bolt Pad Eye - 5mm Diameter - 60mm Length

This U-Bolt Pad Eye, crafted from high-quality 316L stainless steel, is designed for a range of fastening applications including shrouds, lifelines, and blocks. It is fully drop forged, providing superior strength and durability.

Features:

• Made from 316L stainless steel for enhanced corrosion resistance
• High working and breaking loads ensure safety and reliability
• Versatile for various fastening applications
• Includes bolts and counter-plate for installation
• Max tightening torque of 4.5 Nm

Specifications:

• Working Load: 1410 lbs (640 kg)
• Breaking Load: 4400 lbs (2000 kg)
• Weight: 0.077 lbs (35 g)

Dimensions:

• Length: 2 23/64" (60 mm)
• D diameter: 13/64" (5 mm)

*Sold individually.

• Construction: Fully drop forged for maximum strength
• Material: Corrosion-resistant 316L stainless steel
• Includes installation hardware (bolts and counter-plate)
• Designed for high safety: WLL based on a safety factor of 5

Product Tags

Wichard U-Bolt Pad Eye - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"
