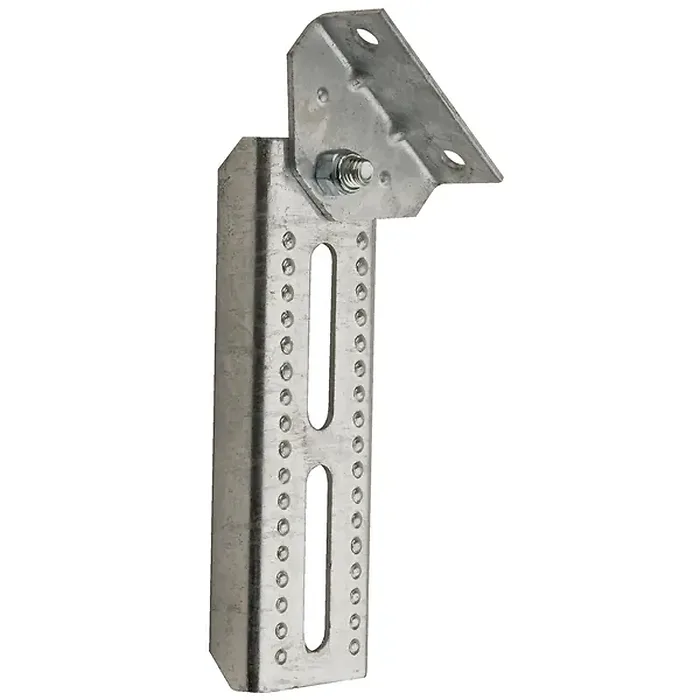

8" Swivel Bracket Assembly for Bunk Boards
<\/strong><\/p>

Designed specifically to support bunk boards, this adjustable bracket assembly from C.E. Smith features hot dip galvanizing to withstand the toughest marine environments. The assembly incorporates both bolster and swivel brackets for enhanced functionality and durability.<\/p>

Includes:<\/strong><\/p>

- Bolster bracket (model 10100G)<\/p>

- Swivel bracket (model 10200G)<\/p>

• Bolster bracket: 8" in length, made from 11 gauge material, 2-1/2" wide, 1/2" wide slots, with a swivel hole of 1/2" diameter, and slots spaced 2-3/4" apart.<\/li>
• Swivel bracket: constructed from 11 gauge material, features a bunk flange measuring 1-3/8" x 3-1/2", with bunk flange holes of 3/8" diameter, a swivel flange height of 2" x 3-1/2", a swivel flange hole of 1/2" diameter, and hole centers spaced 2-1/2" apart.<\/li>
• Overall assembly length is 9".<\/li><\/ul>
