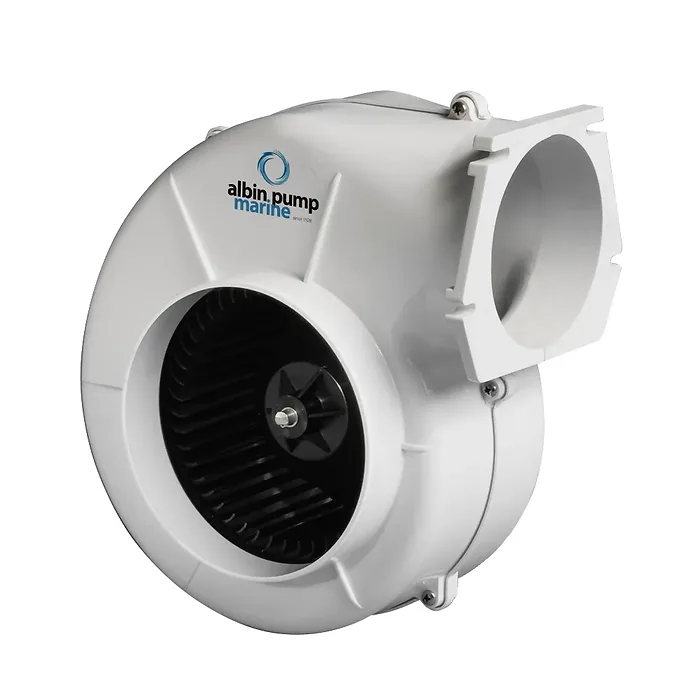

Air Blower 500 Flange - 24V

This 4" flange mounted marine ventilation blower operates at 24V and has a capacity of 500 m³/h (324 CFM). It features a 100mm inlet and a 103mm outlet.

Constructed from high-durable hermoplastic PA6 white Nylon with an integrated blower motor and a 6A fuse, this unit is reliable for marine applications.

Interchangeable with Johnson Pump 80-47417-02.

• Weight: 2.4 kg / 5 lbs
• Dimensions: 290 mm (11.4 in) L x 257 mm (10.12 in) H x 150 mm (5.9 in) W
• Type: 4" Flange
• Certification: CE marked ISO 9097:1991 Marine (small craft electrical fans), ISO 8846 1990 (ignition protection), ISO 10133 2000 (electrical systems), EN55014-1 2006 (2004/108EC)
