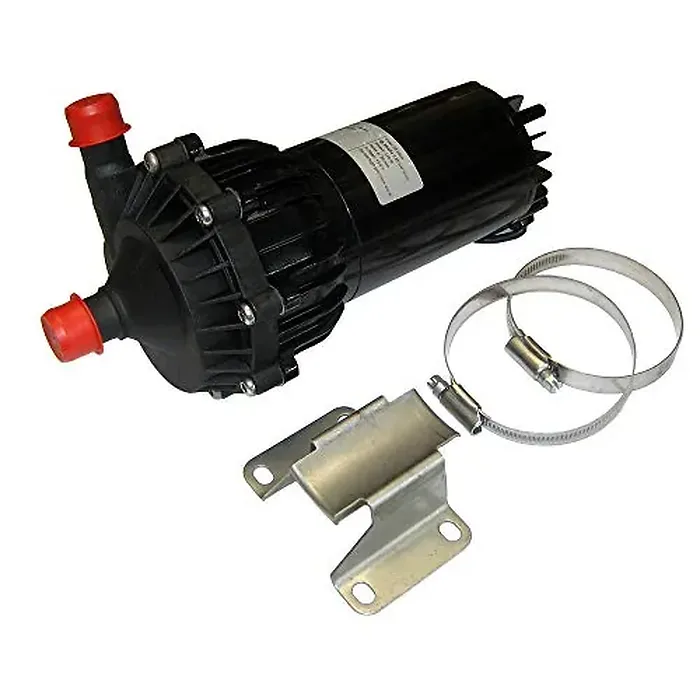

CM90 Circulation Pump - 17.2 GPM - 12V

The CM90 circulation pump is a compact, magnetic-driven centrifugal pump designed for high flow rates and low electric consumption. It is suitable for fresh water, ethylene glycol, and saltwater circulation, featuring a durable glass-fiber reinforced PPA body.

Specifications:

• System Pressure: -0.3 to 3.0 bar; stationary max. 4.0 bar
• Liquid: Water/glycol mixture; max. 60% glycol, suitable for fresh and saltwater
• Motor Service Life: More than 5,000 hours at nominal voltage; 10,000 start/stop cycles; interchangeable motor
• Dry Running: Can run dry for 30 minutes
• Dimensions: 244mm L x 120mm W x 150mm H
• Weight: 6.6 lbs
• Capacity: 17.2 GPM
• Ports: 3/4"

• Compact design for versatile applications
• High flow rates with low power consumption
• Durable construction with reinforced PPA body
• Interchangeable motor for easy maintenance
• Suitable for various liquid types, including saltwater
• Extended motor service life for reliability
