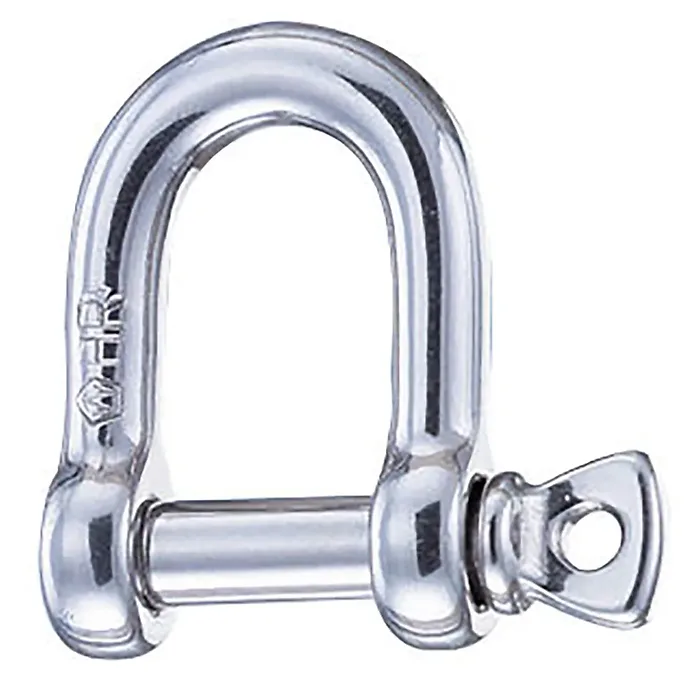

14mm HR D Shackle - Heavy Duty Stainless Steel

This high-quality HR D shackle is crafted from 17-4 PH stainless steel, ensuring exceptional strength and durability for demanding applications. With outstanding resistance to breaking and working loads, this shackle is perfect for industrial uses. Please note that it is not suitable for mooring applications.

Important Features:

• Manufactured from forged HR stainless steel for maximum durability.
• Offers superior resistance compared to standard 316L stainless steel shackles.
• Designed for a wide range of applications requiring high load capacity.
• CE marked for compliance with safety standards.
• Lightweight design allows for easy handling and installation.

• Forged D shackle construction with exceptional strength.
• Working load: (lb) 11280 / (kg) 5120.
• Working Load Limit (WLL): (lb) 5290 / (kg) 2400.
• Breaking load: (lb) 26450 / (kg) 12000.
• Weight: (lb) 0.67 / (g) 304.
• Dimensions: 1 59/64" (49mm) length A, 1 7/64" (28mm) width B, 35/64" (14mm) diameter D.
• Not intended for mooring applications.
