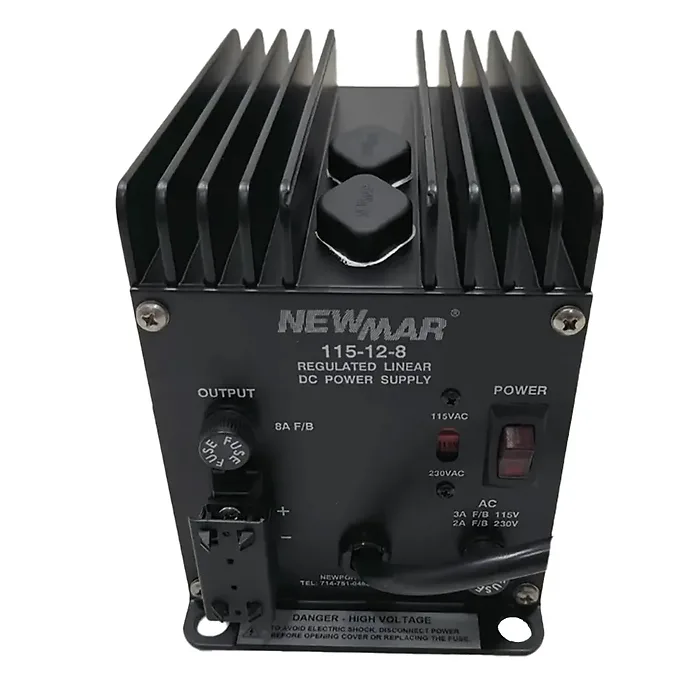

Newmar 115-12-8 DC Power Supply

This durable and reliable 12-volt power supply is suitable for marine communication and navigation equipment. Designed for demanding conditions, it boasts a stable output due to its linear circuit design.

Specifications:

• Nominal Input: 115/230 VAC
• Maximum Input Current @ 115 VAC: 2.5A
• Maximum Input Current @ 230 VAC: 1.5A
• Output Amperage (Intermittent): 8A
• Output Amperage (Continuous): 5A
• Weight: 32 lbs. (14.6 kg)

Dimensions:

• Case Size: 6.0” x 4.6” x 8.5” (H x W x D)

Operating Temperature:

0-50°C with derating above 40°C and thermal shutdown at 85°C case temperature.

• Good voltage and ripple regulation
• Heavy-duty aluminum case with shock mounts for tough environments
• Efficient heat dissipation via large heat sink fins
• Protection features: overvoltage, current limiting, thermal overload
• Optional transfer relay for power backup
