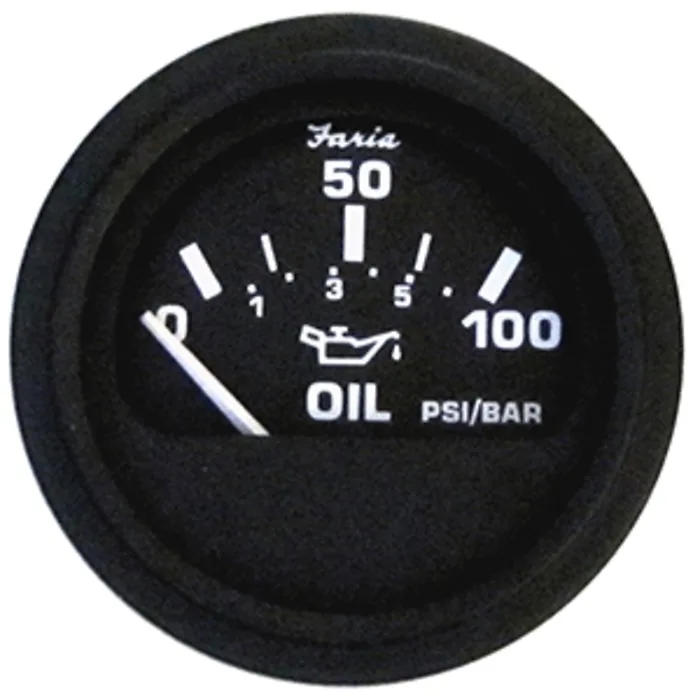

Euro Black 2" Oil Pressure Gauge  (100 PSI)

Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.

A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.

2" - Hole size: 2.0625" (53mm)

Specifications:

• Anti-scratch glass lens
• 12 VDC negative ground
• Perimeter-lighted Black dial
• Can be adapted for 24 VDC systems
• Dual Scale - Imperial and Metric

Factory P/N GP9597

*Sold as an Individual

**Gauge Cover not Included

Euro Black Oil Pressure Gauge - 100 PSI

A pressure gauge operates by sending a low amperage current through the gaugess meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the senders resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.

Benefits:

• Anti-scratch glass lens
• Plastic Cases for corrosion resistance and long life
• 12 VDC negative ground
• Can be adapted for 24 VDC systems
• 100 PSI
• Available in standard or Metric values
