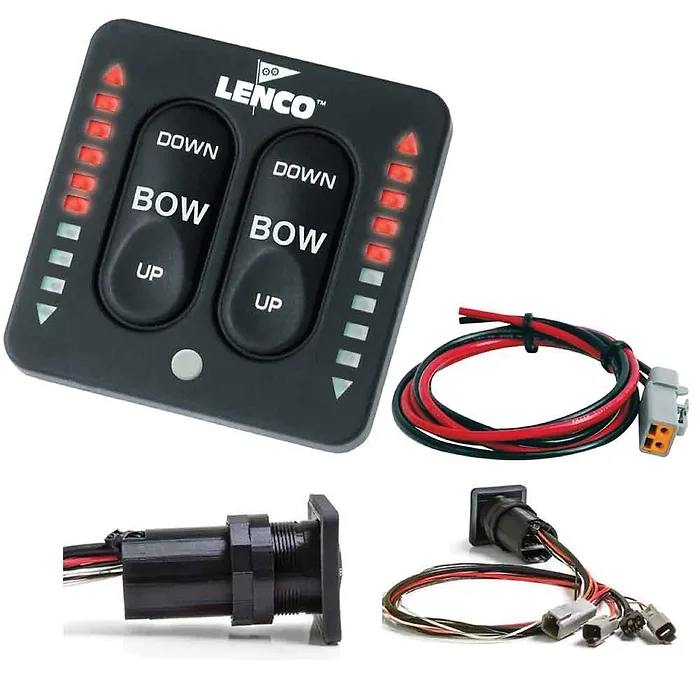

Lenco Integrated LED Tactile Switch Kit for Single Actuator Systems

Enhance your Lenco trim tab system with our innovative, maintenance-free integrated tactile switch kit. This cutting-edge switch technology offers improved accuracy and combines the control box functionality directly into the keypad bezel.

With LED indicator lights, you will always be aware of your trim tabs' positions. The backlit keypad provides clear visibility of graphics even at night, and a photo eye automatically adjusts the indicator brightness for optimal viewing in any lighting condition.

Features Include:

• Quick and straightforward Plug & Play installation
• Instant response time
• Built-in retractor for ease of use
• Low-profile design for aesthetic integration
• Self-contained keypad with waterproof Plug & Play Deutsch connectors
• 30" (76.2 cm) wiring harness from the back of the switch bezel
• Includes a 36" power pigtail
• 2 1/16" hole cut-out size; overall keypad dimensions: 2.75" x 2.75"
• Requires 4.08" clearance from the back of the keypad's mounting location
• Two high-intensity LED indicators for precise tab position display
• Ambient light photo eye for visual clarity
• Backlit keypad for nighttime visibility
• Self-Check feature for operational reliability

Replacement parts are available and sold separately.

Specifications:

• 3 Year Warranty
• System Type: Single Actuator
• Compliance: CE Certified

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
