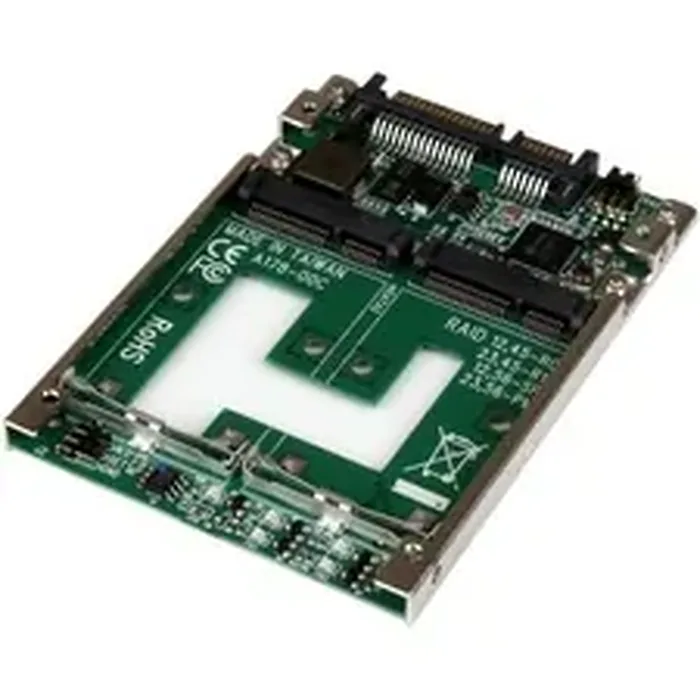

StarTech 25SAT22MSATBrand NewProduct # 25SAT22MSATBuild a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay. Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support. 25SAT22MSAT Features: Number of Hard Drives Supported: 2 Number of Hard Drives Installed: No Controller Type: Serial ATA/600 RAID Levels: 0, 1, Concatenation, JBOD Host Interface: SATA/600 Form Factor: Internal
Hardware
Drive Installation: Fixed
Drive Type: mSATA (Mini SATA)
Interface: SATA
Number of Drives: 2
Chipset ID: JMicron JMS562 Connectors
Drive Connectors: 2 x mSATA (52-Pin, Mini SATA) Receptacle
Host Connector: 1 x SATA Data and Power Combo (7+15-Pin) Receptacle Performance
Hotswap Compatibility: No
Maximum Data Transfer Rate: 6 Gbps
Port Multiplier: Yes
RAID: Yes
Supported RAID Modes: BIG (Spanning or Concatenation) / JBOD - (Just a Bunch of Disks) / RAID 0 (Striped Disks) / RAID 1 (Mirrored Disks)
Type and Rate: SATA III (6 Gbps) Software
OS Compatibility:
- Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Server 2012/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit)
- Mac OS X
- Linux Indicators
LED Indicators:
- 1 x Drive 1 Activity
- 1 x Drive 1 Failure
- 1 x Drive 2 Activity
- 1 x Drive 2 Failure Environmental
Operating Temperature: -40C to 85C (-40F to 185F) Package Contents
1 x Dual mSATA to 2.5inch SATA Adapter
1 x Mounting Screw Kit
1 x Install Guide Item Dimension (L"xW"xH")
5.59 x 6.69 x 1.18

Weight
13.23 lb

Warranty Information
2 Years
