Trident Marine 3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot

Trident 3/8" Outboard Fuel Line Hose - EPA Compliant - Gray

This 3/8" fuel line hose is engineered with advanced fuel and age-resistant materials. Featuring a unique "Barrier Liner" on the inner surface, it prevents direct fuel contact with rubber, significantly minimizing fuel permeation while protecting against ethanol degradation. This is crucial as higher ethanol blends (E-15) become more common at gas stations.

Key Features:

• Sold by the foot
• Exceptional resistance to fuel permeation, aging, heat, cold, and ozone
• Excellent flexibility and fitting retention
• Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)
• EPA Certified and has CARB Executive Order for low permeation Type B1-15

Applications:

• Ideal for marine fuel distribution, return, vent, and transfer
• Suitable for all marine fuels, including gasoline, alcohol blends (CE-10), diesel, and biodiesel

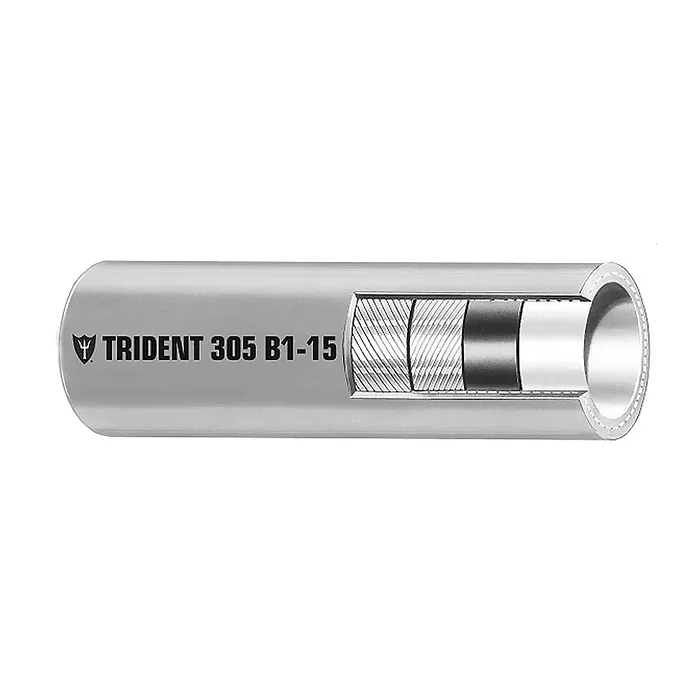

Construction:

• Inner Tube: Fluoroplastic Internal Barrier
• Outer Cover: Gray CPE Rubber
• Reinforcement: 2-Spiral Polyester Plies
• Temperature Range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner Diameter: 3/8" (9.50 mm)
• Outer Diameter: 0.588" (14.9 mm)
• Burst Pressure: 175 psi (1.21 mpa)
• Working Pressure: 35 psi (0.24 mpa)
• Bend Radius: 4" (101.6 mm)
• Weight: 10.5 lb/100 ft. (0.156 kg/m)
• Permeation Rate: 5.0 (Standard is 15g/m²/24hrs CE10)

• Constructed with a Barrier Liner to prevent fuel contact with rubber
• Sold by the foot for customizable lengths
• Resistant to various environmental factors, ensuring longevity
• Compatible with high ethanol blends and biodiesel
• Meets stringent EPA and CARB standards
