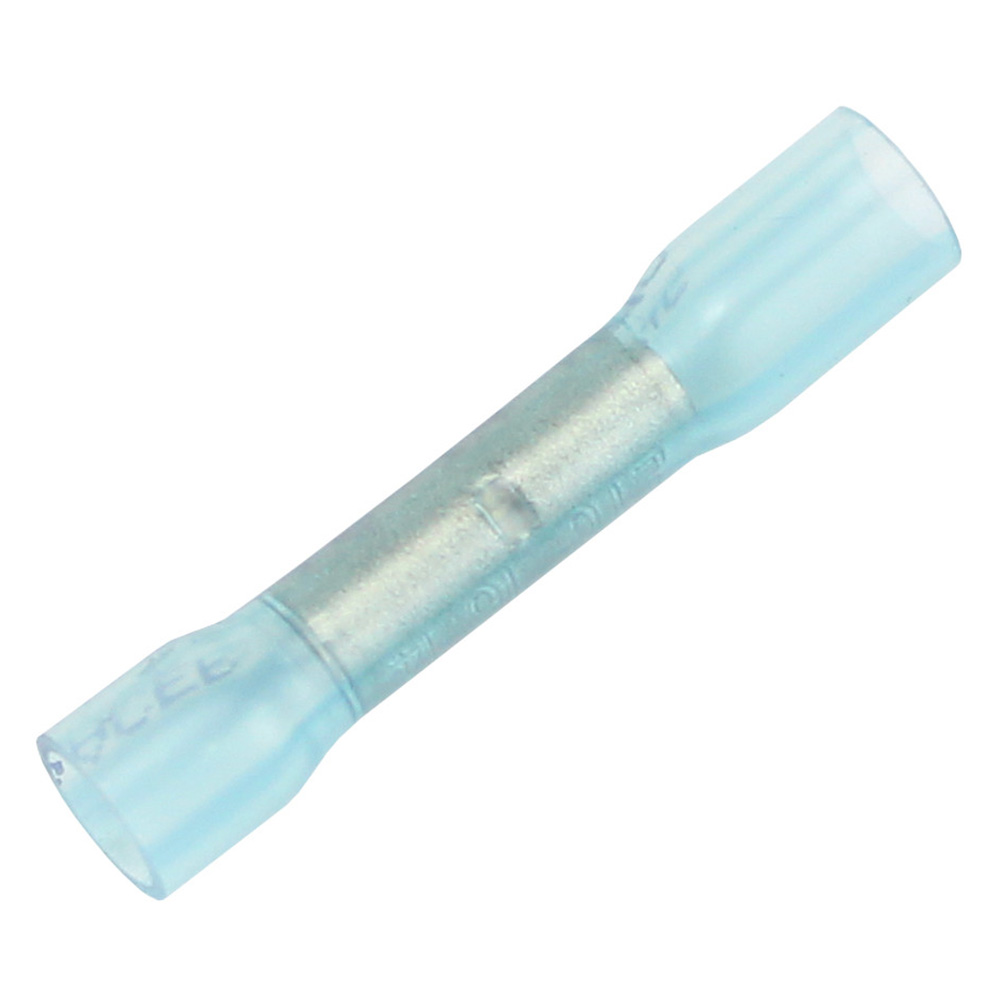

12-10 Heat Shrink Butt Connectors - 100 Count

Gauge Size: 12-10

Quantity: 100

Product Features:

• Cross-linked polyolefin tubing is significantly stronger than PVC and will not burn like PVC.
• Heat-activated adhesive lining creates an impervious seal to salt water, oil, acids, and sunlight, while providing strain relief.
• Nylon insulator preferred by experts for marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• UL Listed and CSA Recognized.
• Highest shrink ratio - shrinks to 1/3 of original size.
• Shrinks at 257°F (125°C).
• Operating temperature range: -40°C to 110°C.
• ANCOR heat shrink connectors feature heat-activated adhesive built into the sleeve of the heat shrink tubing.
• Forms a water-tight seal with ultimate vibration and strain relief.
• Tinned for corrosion resistance.
• Made from pure copper for maximum current flow.
• Brazed seam for maximum strength.
• Wire range: 12-10 AWG.
• Wire diameter range: 3-5 mm.
