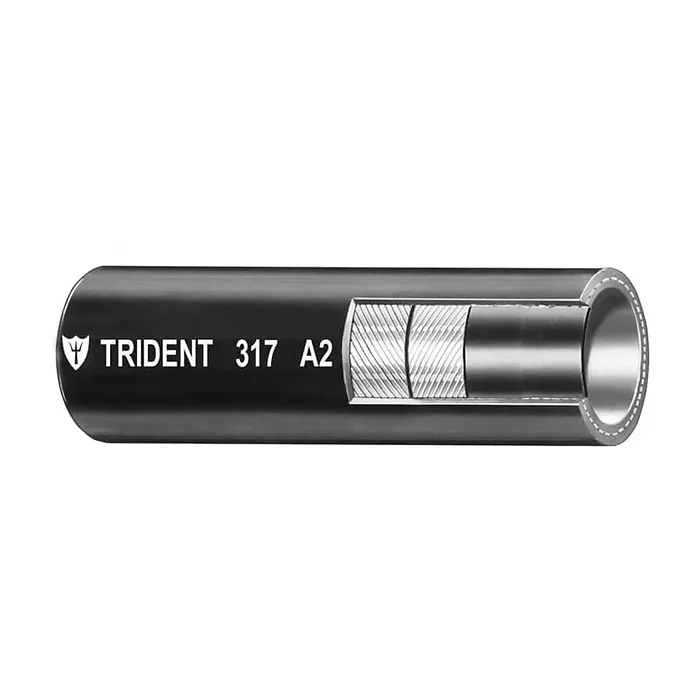

Trident Marine Fuel & Vent Line Hose - 5/8" x 50' - Black

The Trident 5/8” A2 Fuel Hose is ideal for gasoline venting (including ethanol blends) and diesel (including bio-diesel blends). Designed with a superior fuel, fire, and age-resistant formulation, this hose meets the demands of marine environments.

Key Features:

• Exceptional resistance to aging, fire, heat, cold, and ozone
• Superior bendability for easy installation
• NMMA Type Accepted and CE certified for safety and quality

Applications:

• Fuel hose suitable for vent and diesel distribution
• Compatible with all marine fuels including gasoline, alcohol blends, diesel, and bio-diesel

Construction Details:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: 2 Spiral Polyester
• Temperature Range: -20°F to 212°F (-28°C to 100°C)
• Length: 50 ft (15 m) Boxed

Specifications:

• Inner Diameter: 5/8" (15.9 mm)
• Outer Diameter: 0.960" (24.4 mm)
• Burst Pressure: 200 psi (1.38 mpa)
• Working Pressure: 50 psi (0.34 mpa)
• Bend Radius: 3" (76.2 mm)
• Weight: 25.84 lb/100 ft (11.72 kg/m)

*Meets or exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 standards.

• High resistance to fuels, fire, and environmental factors
• Flexible design for easy handling and installation
• Certified for marine use, ensuring safety compliance
