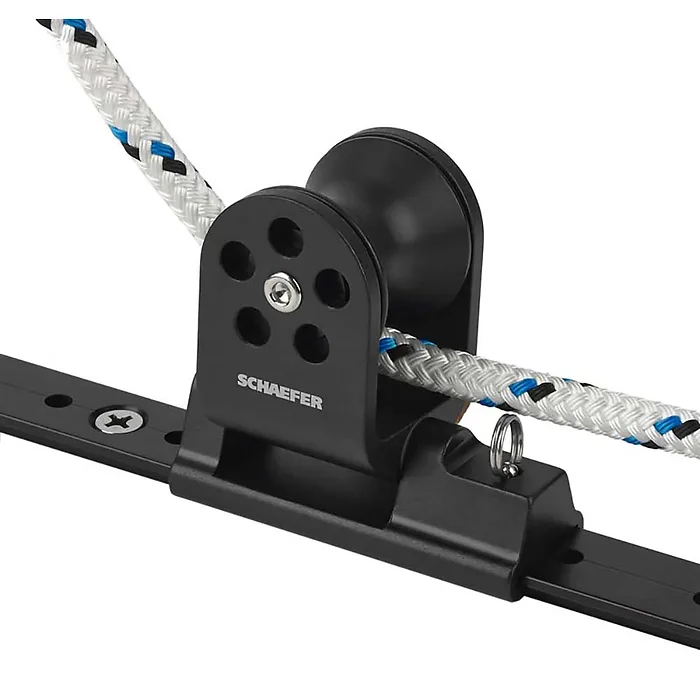

Schaefer 32-77 Twin Sheet Lead Block - Black 25x3MM

This high-performance twin sheet lead block is designed for optimal functionality. It features an anodized aluminum body made from durable 6061-T6 aluminum, allowing it to articulate for precise lead management. The anodized aluminum sheave operates on low-friction Nomex™/Teflon™ bearings, providing exceptional strength and efficiency. The pin stop mechanism simplifies line adjustments, making it an essential component for your sailing needs.

• Track Size: 1" x 1/8" (25 mm x 3 mm)
• Boat Size: Up To LOA 29'
• Maximum Displacement: 5000 lbs.
• Sail Area Capacity: 315 sq. ft (8m², 2270 kg)
• Sheave Diameter: 1-1/2" (38 mm)
• Maximum Line: 2 x 1/2" (13 mm)
• Length: 3-1/2" (89 mm)
• Width: 1-11/32" (34 mm)
• Height: 3-9/32" (83 mm)
• Bearing Height: 1-29/32" (49 mm)
• Safe Working Load: 2500 lbs. (1135 kg)
• Weight: 10 oz. (284 g)
