General Information

---

Manufacturer:Ergotron, Inc
Manufacturer Part Number:33-350-200
Manufacturer Website Address:http://www.ergotron.com
Brand Name:Ergotron
Product Line:WorkFit-S
Product Name:Workfit-S, Single Ld With Worksurface+
Marketing Information:

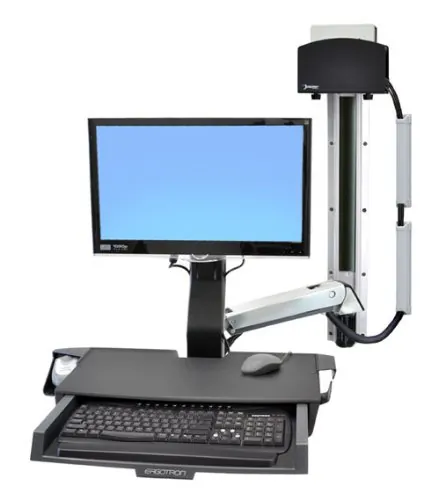

Single monitor stand with an included worksurface transforms any surface into a personalized height-adjustable desk. Sit-and-stand design allows you to position two monitors and a keyboard from a sitting position to a standing position to make computing comfortable during prolonged periods. Constant Force lift technology provides fluid, one-touch adjustments. Foldable keyboard holder swings the arm out of the way so you can use more of your desk space. Cable management system routes and hides your cords to keep your desk free from tangled cables.

Packaged Quantity:1 Each
Product Type:Display Stand

Technical Information

---

Display Type Supported:Flat Panel
Maximum Adjustable Stand Height:35.70"
Maximum Screen Size Supported:24"
Maximum Load Capacity:18 lb
Finishing:Polished
Adjustable Height:Yes
Features:

• 360° Rotation
• Pivot
• Tilt
• Ergonomic
• Lift Mechanism
• Cable Management
• Integrated Mount

Physical Characteristics

---

VESA Mount Standard:

• 75 x 75
• 100 x 100

Color:Black
Material:

• Aluminum
• Steel
• Plastic

Form Factor:Desktop
Height:35.7"
Width:27"
Depth:44"
Weight (Approximate):50 lb

Miscellaneous

---

Package Contents:

• WorkFit-S Single LD with Worksurface+
• Height Adjustment Column
• Desk Clamp
• LCD Pivot
• Worksurface
• Large Keyboard Tray
• Mounting Hardware

Additional Information:

Weight Capacities:

• LCD: 6-16 lbs
• Worksurface: 5 lbs
• Keyboard Tray: 5 lbs
• Total weight of components when added together should not exceed 18 lbs

Lift Range:

• LCD and keyboard adjust 18" in tandem
• LCD adjusts 4.8" independently
• Maximum LCD height adjustment: 22.8"
• Worksurface restricts the vertical travel range of the LCD lift pivot
• Height adjustment of LCD without worksurface is 5"

Dimensions:

• Worksurface: H 0.25" x W 23" x D 15"
• Keyboard Tray: H 0.25" x W 27" x D 9"

Rotation:

• 360° Portrait to Landscape Screen

Compatibility:

• 1 x LCD Display
• Keyboard
• Mouse

Certifications & Standards:

VESA MIS-D

Recycled:No
Assembly Required:No
Country of Origin:China

Warranty

---

Limited Warranty:5 Year
