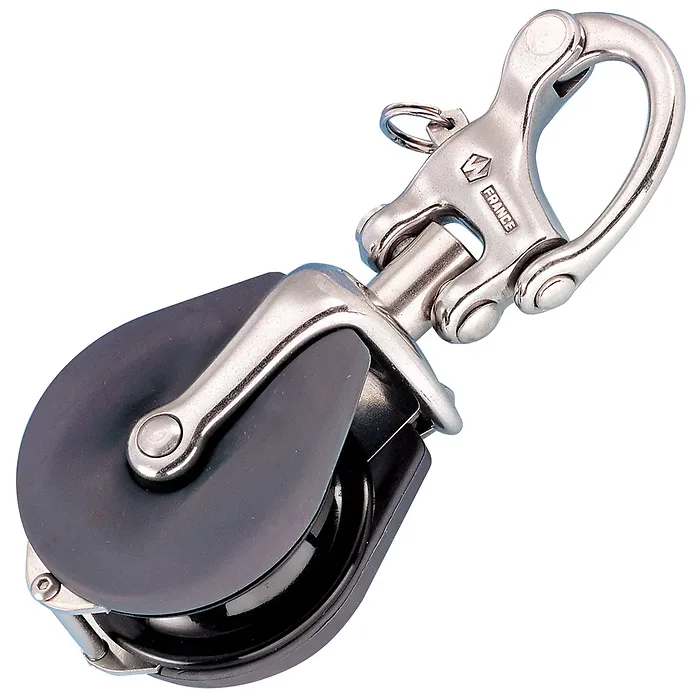

Wichard Snatch Block with Snap Shackle - Maximum Rope Size 18mm (23/32")

This snatch block is designed for easy rigging and secure usage, accommodating a maximum rope size of 18mm (23/32"). Featuring a robust snap shackle mechanism, it ensures free rotation while maintaining strength and reliability.

Applications:

• Effective for changing sheets
• Used as spinnaker sheet deflector blocks

Materials:

• HR 17.4 PH forged stainless steel arm
• Elastomer molded cheeks for shock and scratch resistance
• Composite sheave for durability

Specifications:

• Rope size: 18mm (23/32")
• Length: 6 7/64" (155mm)
• Width: 2 21/64" (59mm)
• Thickness: 1 59/64" (49mm)
• Working Load: 2640 lb (1200 kg)
• Breaking Load: 5510 lb (2500 kg)
• Weight: 0.913 lb (414 g)

Important Notes:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

• Free rotation with snap shackle mechanism
• Durable and strong closing system
• Easy opening by pulling the plunger pin
• Shock and scratch-resistant design
