Marinco Wiper Motor 1000 Series - 12V - 2.5" Shaft - 80°

MFG No: 37180
SKU No: K3S4JJCFE7
UPC: 035028371801
MFG. Name: Navico Group
Available: 12
Condition: New

$168.37

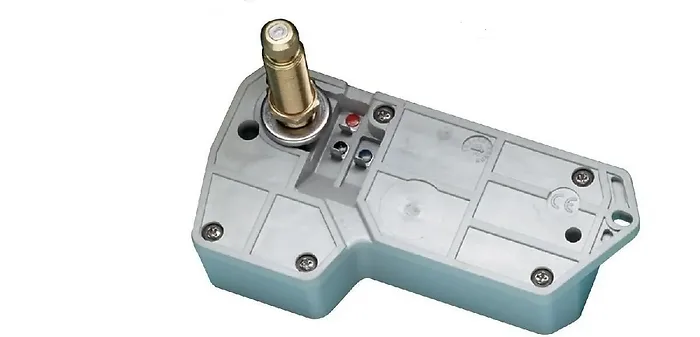

Marinco 37180 12V 1000 Waterproof Wiper Motor with a 2.5in shaft and 80 degree Sweep

Model: 37180
  • Coast to park with adjustable right or left self parking
  • Heavy-duty motor with anti-rotation drive shaft
  • Knurled drive shaft and solid brass arm drive nut
  • RF shielded circuitry
  • Includes 5A fuse and holder (on/off switch sold separately)
  • 3 year limited warranty

The Marinco 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degrees or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degrees or less.

Specifications
Stall torque55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall current9.8 to 10.0A
No-load current0.8 to 1.2A
Voltage12V
Fuse5A
Shaft diameter0.625"
Dimensions6.625" x 3.375" x 2" (L x W x D)
