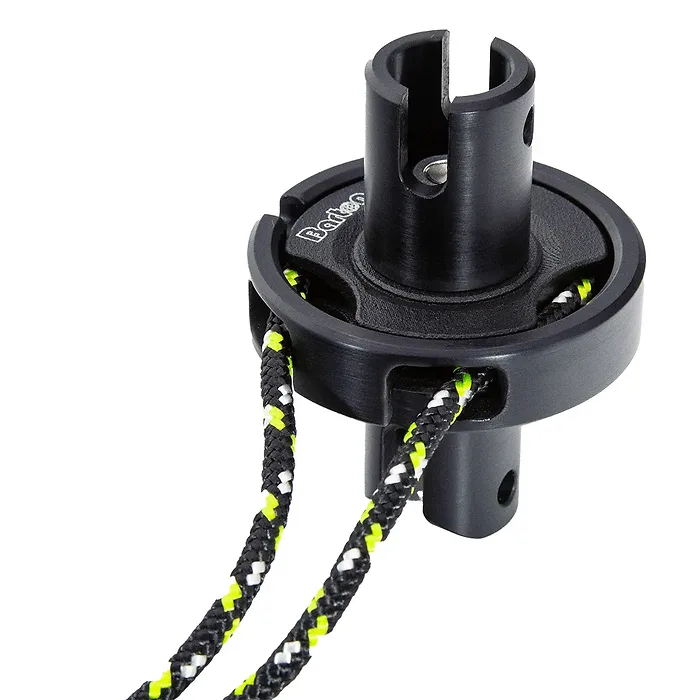

High-Duty Continuous Line Furler

Engineered for exceptional performance in challenging sailing conditions, the Barton HD Continuous Line Furler features advanced hybrid-bearing technology. This innovation combines high-grade materials and Torlon ball bearings to ensure the furling wheel remains steady and rotates effortlessly, even under extreme loads.

Weighing only 175g yet rated for a safe working load of 600kg, this furler delivers unmatched strength and efficiency for avid sailors.

Compatible with 4mm - 6mm (3/16” - 1/4”) furling lines, it boasts a unique 3D printed tri-rotor wheel and an integrated fairlead for excellent rope grip. The toolless rope insertion design minimizes the risk of losing components overboard.

True to Barton Marine's commitment to quality, the central shaft is crafted from premium 316 stainless steel, while the main body and fork are constructed from durable anodized 6061 aluminum.

Specifications:

• Overall Length: 90mm / 3-9/16"
• Pin-to-Pin Length: 65mm / 2-9/16"
• Pin Diameter: 6mm / 1/4"
• Maximum Sail Area: 12m² / 130ft²
• Break Load: 1200kg / 2640lbs
• Working Load Limit: 600kg / 1320lbs
• Drum Diameter: 50mm / 2"
• Overall Diameter: 68mm / 2-11/16"

• Hybrid-bearing technology for smooth performance
• Weighs just 175g while supporting 600kg
• Compatible with 4mm - 6mm furling lines
• Innovative 3D printed tri-rotor wheel design
• Easy toolless rope insertion
• Constructed from high-grade stainless steel and aluminum
• Ultimate durability in demanding conditions
