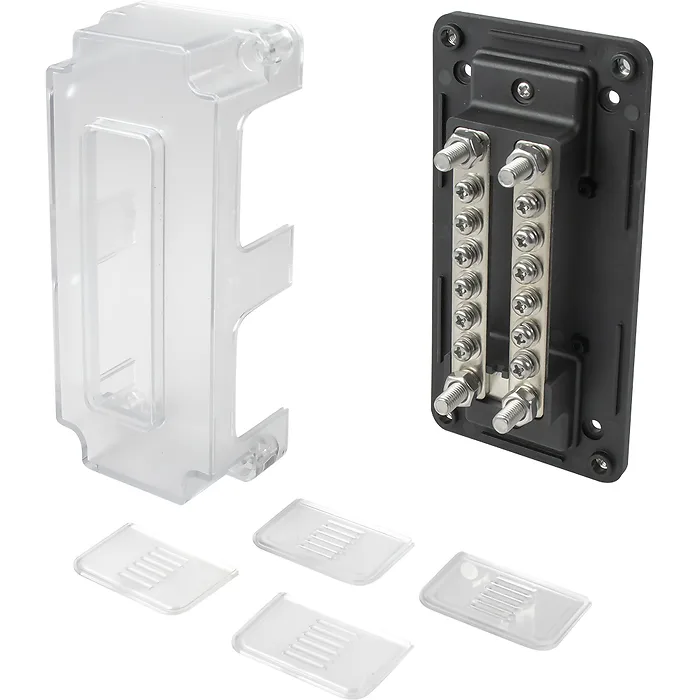

Dual Buss Bar with Cover - 12 Terminals

This dual bus bar is designed for DC positive or negative distribution on one block or AC neutral and safety ground collection on one block. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.

Features:

• Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals per buss
• Installs with four #8 FH fasteners (included)
• 48VDC, 150A per buss; 300VAC, 150A per buss
• CE and RoHS compliant

Specifications:

• Terminals: 12
• Length (inch): 5-1/2"
• Width (inch): 2-3/4"
• Depth (inch): 1-11/16"
• Max. Amps: 150
• Fastener: #8 FH
• Weight: 0.59 lb.
