General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:4POSTRACK8U
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:4POSTRACK8U

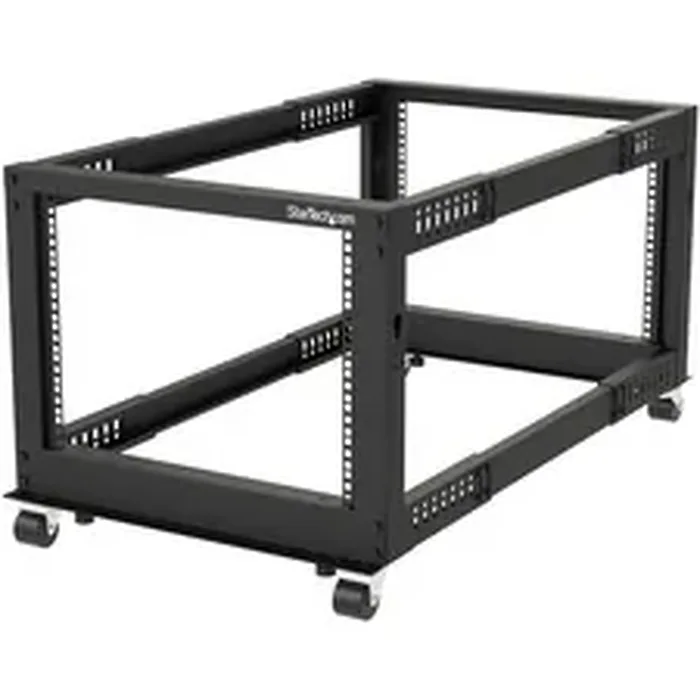

Product Name:8U Open Frame Rack - 4 Post - Adjustable Depth
Marketing Information:

The 8Uopen frame racklets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

Easy to Assemble

Designed with ease of use in mind, this 8U4postrack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40 in.) that make it easy to adapt theadjustable server rackto fit your equipment.

DurableDesign

This durablefree standingserver racksupports a static loading capacity of up to 1200lb.(544kg) and portable rolling weight capacity of 660lb.(300kg). The rack also features offers compliance with the EIA/ECA-310 standard for a universal design that's compatible with mostnetwork equipment rackequipment.

For a complete server storage solution that saves you time and hassle, themobile server rackincludes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability while free standing.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers bothpreand post-sales.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type:Rack Frame

Technical Information

---

Rack Type:Open Frame
Application/Usage:

• Server
• KVM Switch
• LAN Switch
• Patch Panel
• A/V Equipment

Features:

• Adjustable Mounting Rails
• Leveling Feet
• Cable Management
• Casters

Physical Characteristics

---

Form Factor:Floor Standing
Product Color:Black
Product Material:

• Steel
• Cold Rolled Steel

Dynamic/Rolling Weight Capacity:661.39 lb
Static/Stationary Weight Capacity:1199.31 lb
Height:21"
Width:23.6"
Length:44.4"
Weight (Approximate):49.60 lb
Rack Height:8U
Rack Width:19"
Rack Depth:40.80"

Miscellaneous

---

Package Contents:

• 4 x Caster
• 18 x M6 Flange Nut
• 18 x M6 Flat Washer
• 18 x M6 Hex Screw
• 4 x Cable Management Hook
• 4 x Hook Mounting Screw
• 2 x Left Vertical Rail
• 2 x Right Vertical Rail
• 8 x Corner Section
• 4 x Center Section
• 2 x Base Bracket
• 2 x Top Bracket
• 50 x M8 Flat Washer
• 50 x M8 Hex Screw
• 1 x 10mm Wrench
• 1 x 13mm Wrench
• 1 x Philips Head Screwdriver
• 4 x Philips Head Screw
• 4 x Locking Washer
• 24 x M6 Screw
• 24 x M6 Plastic Washer
• 24 x M6 Cage Nut
• 4 x Leveling Feet
• 4 x Grounding Wire
• 1 x Manual

Assembly Required:Yes
Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• REACH

Country of Origin:China

Warranty

---

Limited Warranty:2 Year
