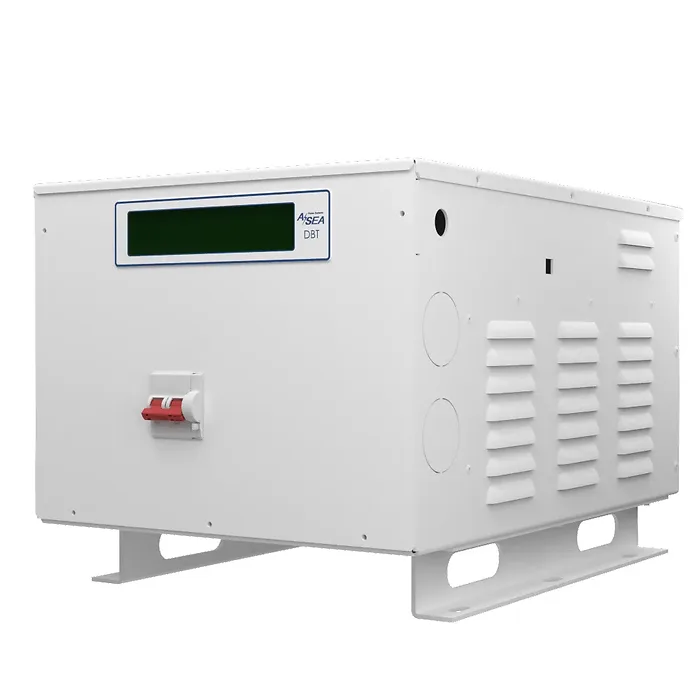

ASEA DBT12 GEN2 Dock Boost Transformer

The Dock Boost Transformer (DBT) is designed to provide smart voltage regulation for marine vessels, ensuring complete protection against common shore power issues such as brownouts, voltage spikes, sags, and both low-line or high-line voltage conditions originating from dock power pedestals. With the capability to boost input voltages that sag by up to 35%, the DBT12 GEN2 ensures reliable power delivery to your vessel.

This transformer boasts a compact and lightweight design, making it an ideal replacement for both new constructions and retrofit applications. It presents a direct replacement for the Charles Iso-Boost, ensuring ease of installation.

The DBT12 accepts input voltages ranging from 167 V-270 V (47-70 Hz) and outputs a Split phase 120/240V or 115/230 V nominal. Additionally, the DBT24 model is available for handling nominal voltages of 230V, 400V, and 480V, each providing a 115/230V Split phase output.

Key Features:

• Direct replacement for the Charles Iso-Boost transformer
• Three boosting levels with an advanced smart tap system
• Compact and lightweight design at 127 lbs
• Industry-recognized mounting pattern for easy installation
• Wide input voltage range of 167-270 VAC
• Capable of being paralleled for advanced applications
