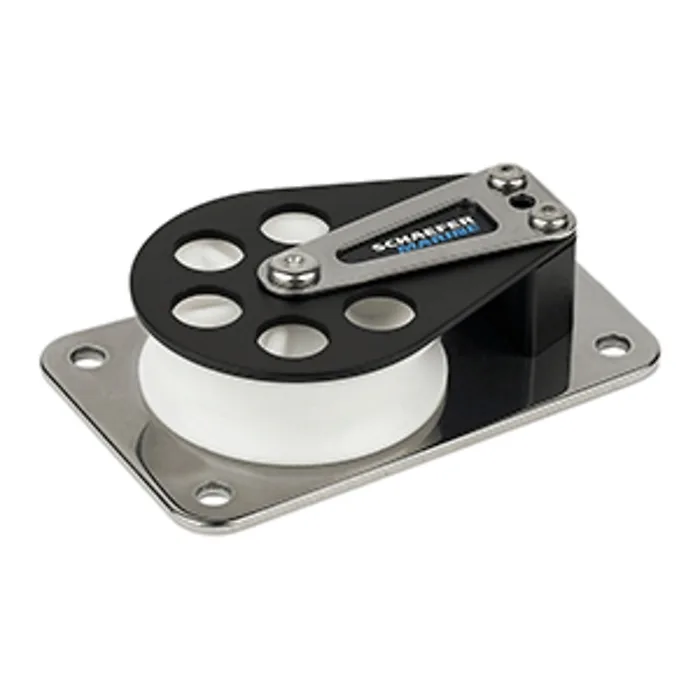

Series 7 Flat Base/Aluminum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

• Sheave Dia. 2-3/8" (60 mm)
• Max. Line 1/2" (13 mm)
• Length 4-3/8" (111 mm)
• Width  2-3/4" (70 mm)
• Height 1" (25 mm)
• Fasteners (4) 1/4" RH (6 mm)
• C/C 3-5/8" (92 mm)
• C/C (wide end) 2" (51mm)
• C/C (narrow end) 1-9/16"
• SWL 2250 lbs. (1020 kg)
• Weight Alum. 9.6 oz. (272 g)

Series 7 Flat Base/Aluminum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

• Sheave Dia. 2-3/8 (60 mm)
• Max. Line 1/2 (13 mm)
• Length 4-3/8 (111 mm)
• Width  2-3/4 (70 mm)
• Height 1 (25 mm)
• Fasteners (4) 1/4 RH (6 mm)
• C/C 3-5/8 (92 mm)
• C/C (wide end) 2 (51mm)
• C/C (narrow end) 1-9/16
• SWL 2250 lbs. (1020 kg)
• Weight Alum. 9.6 oz. (272 g)
