$133.79

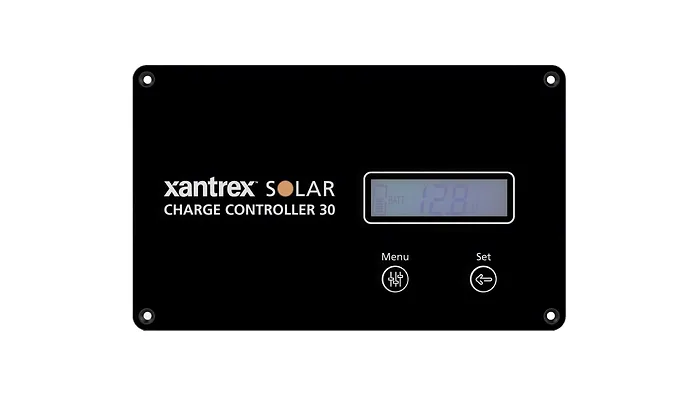

Xantrex PWM Charge Controller
Model: 709-3024-01Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.
The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.
Specifications| 12/24V Auto-Detect | |
| Battery Input Voltage Range | 8V to 32V |
| Rated Charge Current | 30A |
| Max. PV Short Circuit Current | 30A |
| Max. PV Open Circuit Voltage | 50A |
| Battery Types Supported | Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO ) |
| elf-consumption | 12V: 4.2mA 24V: 2.6mA |
| Temperature Compensation Coefficient | -3mV/ degC/2V |
| Grounding | Common negative |
| ENVIRONMENTAL DATA | |
| Storage Temperature Range | -30 degC to 80 degC |
| Operating Temperature Range | -20 degC to 55 degC (fully rated output) |
| MECHANICAL DATA | |
| Dimensions | 7.03 W x 4.31 in H x 1.86 in D (178.5mm W x 109.4mm H x 47.3mm D) |
| Max. Cable Size (PV Array and Battery | 0.63in2 (16mm2) / 6AWG |
| Recommended Cable Size | 0.24in2 (6mm2) / 10AWG or larger |
Xantrex Solar PWM 30A Charge Controller

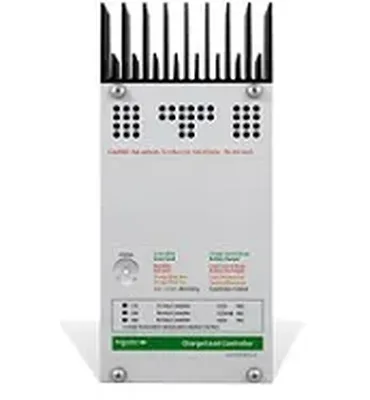

Related Products
