Humminbird XM-9-HW-MDI-T Transom Mount with Temp

MFG No: 710280-1
SKU No: KU63D9CWDK
UPC: 082324053207
MFG. Name: JOHNSON OUTDOORS INC
Available: 6
Condition: New

$245.84


Humminbird XM-9-HW-MDI-T

Model: 710280-1
  • This accessory is compatible with the following Humminbird products: HELIX 8 G3N Series MEGA DI and MEGA SI+, HELIX 9 G3N Series MEGA DI and MEGA SI+, HELIX 10 G3N Series MEGA DI and MEGA SI+, HELIX 12 G3N Series MEGA DI and MEGA SI+.
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

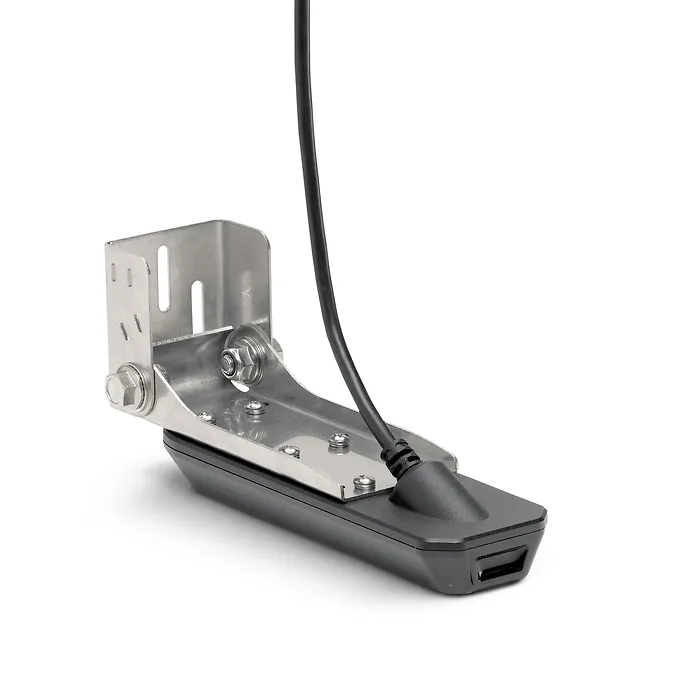

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20 feet cable.

Specifications
Mount Type
Transom
Sonar TypeMEGA Imaging, Dual Spectrum
Current ModelsHELIX 8, HELIX 9, HELIX 10, HELIX 12

? Compatible with Humminbird(R) HELIX(R) 8 G3N Series MEGA DI & MEGA SI+, HELIX(R) 9 G3N Series MEGA DI & MEGA SI+, HELIX(R) 10 G3N Series MEGA DI & MEGA SI+ & HELIX(R) 12 G3N Series MEGA DI & MEGA SI+;? Dual-spectrum CHIRP freq--Full: 150kHz-220kHz, Narrow: 180kHz-240kHz, Wide: 140kHz-200kHz;? Dual-spectrum CHIRP--max depth: 1,200ft;? Down Imaging(R) freq--max depth: 455kHz: 440kHz-500kHz--400ft; 800kHz: 790kHz-850kHz--125ft; MEGA DI+: 1,075kHz-1,150kHz--200ft;? Includes mounting bracket & 20ft cable;
