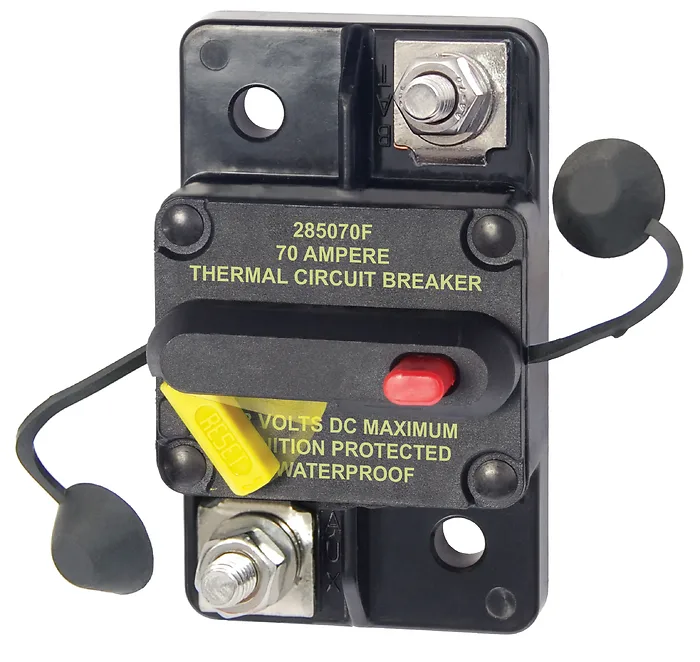

Blue Sea 285-Series 70 Amp Circuit Breaker Surface Mount

MFG No: 7185-BSS
SKU No: UJE53WWBD3
UPC: 632085071851
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 9
Condition: New

$55.94


Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 70A

Model: 7185-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage
70A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque50 in-lb (5.65 Nm)
Interrupt Capacity3000A @ 48V
Minimum Operating Temperature-40 deg C
Maximum Operating Temperature85 deg C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Terminal StudM6 (accepts 1/4 in Ring Terminal)
"
  • 70A capacity for robust protection
  • Surface mount design for easy installation
  • Visible reset lever for clear open condition status
  • Safe for installation on gasoline-powered boats
  • Weather-resistant construction for reliable outdoor use
  • Combines circuit protection and switching in one unit
  • 'Trip Free' design prevents accidental closures
