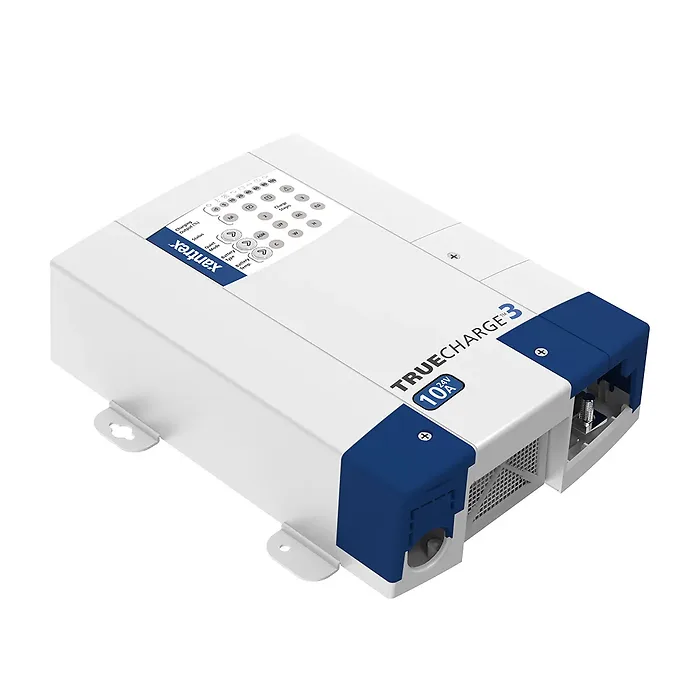

Xantrex TRUECHARGE™3 10A 3 Bank Battery Charger - 24V

Xantrex TRUECHARGE 3 10A 3 Bank Battery Charger - 24V

The TRUECHARGE 3 battery charger is designed for both recreational and commercial applications worldwide, offering an ultra-compact design with a small footprint. Its multistage charging algorithms ensure low electrical interference and are compatible with lithium-ion batteries, setting it apart from predecessors. Ideal for global use, it accepts input voltages from 90 to 265 Vac, accommodating varying power quality.

The easy-to-read display of the TRUECHARGE 3 24V models can be enhanced with an optional remote panel. Each model comes with built-in surge and spike protection on the AC power line.

Features:

• Microprocessor-controlled, multistage charging
• Settings for two and three-stage charging profiles
• Battery-equalization capability
• Compatible with flooded, gel, AGM, and lithium-ion batteries
• Remote panel capability for parallel stacking
• Can charge batteries discharged to very low voltage
• Quiet mode option for reduced noise

Protection Features:

• Reverse battery polarity protection
• Drip-proof design for safety
• DC over-voltage protection
• Over-temperature protection
• Circuit breaker protection

Charging Stages:

Three-stage charging optimizes battery life by regulating voltage and current:

• Bulk: Quickly replaces 70-80% of battery charge
• Absorption: Fills the remaining charge at a safe pace
• Float: Maintains full charge while preventing damage

Electrical Specifications:

• Output Current: 10 A
• Charge Voltage Range: 28.4-31.0 Vdc; Float Voltage: 26.8-27.6 Vdc
• DC Output Connections: Three
• AC Input Voltage: 90-265 Vac; 47-63 Hz
• Efficiency: > 80%
• Recommended Battery Bank Size: Minimum 20 Ah

General Specifications:

• Operating Temperature: 0-60°C (32-140°F)
• Storage Temperature: -40-80°C (-40-176°F)
• Dimensions: 70 x 170 x 250 mm
• Weight: 2.2 kg (4.8 lb)
