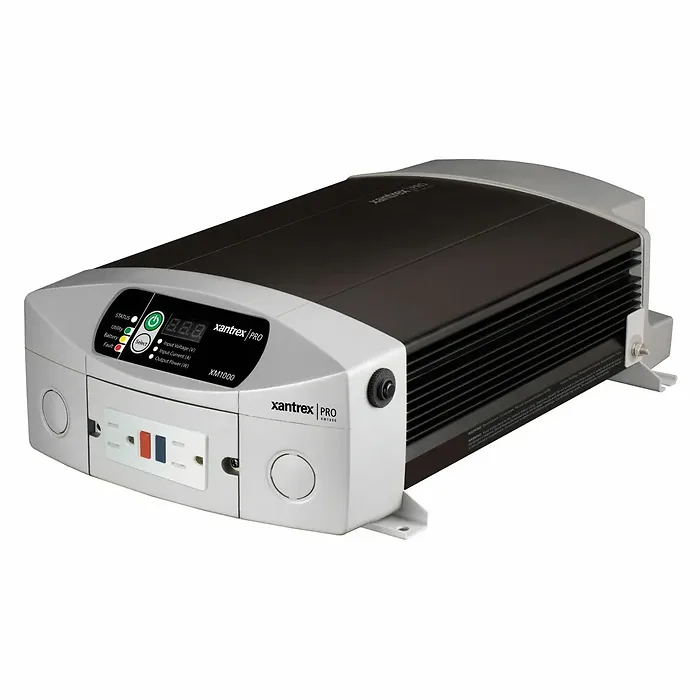

Xantrex XM1000 Inverter 1000 Watt Modified Sinewave

MFG No: 806-1010
SKU No: QP5607ICP1
UPC: 715535113520
MFG. Name: XANTREX LLC
Available: 10
Condition: New

$457.35


The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features

  • 1000/1800W inverter easily powers TVs, small appliances, and other electronics
  • Built-in 15A circuit breaker to protect GFCI connected loads
  • Up to 25A pass through for hardwired loads
  • Digital remote control displays power output, AC source and battery voltage
  • Detachable remote control can be mounted wherever convenient
  • Conformal coated electronics provide moisture resistance
  • Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features

  • Battery over-voltage and under-voltage protection
  • Over temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Ground fault protection
Output waveform Peak efficiency No load power draw Power draw in standby mode Input operating voltage range Transfer relay rating Transfer time Operating temperature range Recommended DC fuse Dimensions (H x W x D) Weight (lbs) Part numbers Warranty

Product Tags

Xantrex XM1000 Inverter 1000 Watt Modified Sinewave

No reviews yet.

Related Products

Electrical Specifications
Maximum continuous power 1000 W 1800 W
Output current (continuous) 8.3 A 15 A
Output frequency 60 Hz +/- 1 Hz 60 Hz +/- 1Hz
Modified sine wave Modified sine wave
88% 88%
< 6 W < 6 W
< 2 W < 2 W
11.0-15.5 VDC 11.0-15.5 VDC
25 A 25 A
<35 milliseconds <35 milliseconds
0 degC - 40 degC 0 degC - 40 degC
AC receptacles 2 2
150 A 250 A
4 x 8.3 x 13 in (103 x 211 x 329mm) 4 x 8.3 x 15.5 in (103 x 211 x 393mm)
7.5 9.5
806-1010 806-1810
1 year 1 year
