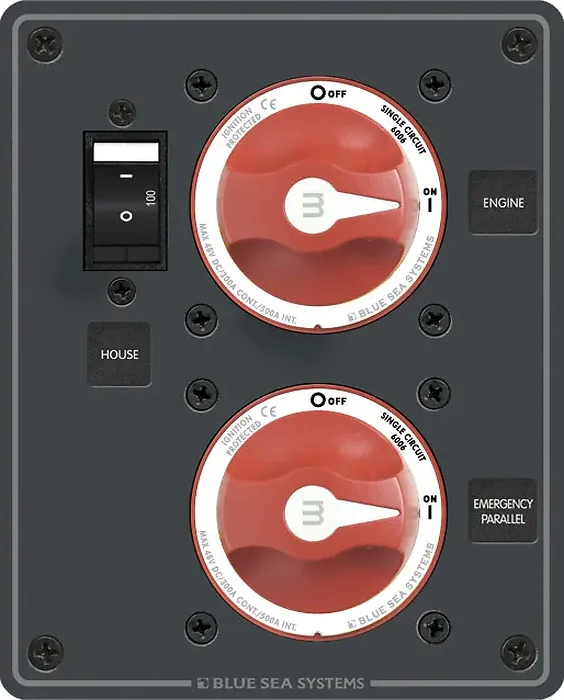

Blue Sea Dual Battery Bank Management Panel Main + 3 Position

Name: 8080-BSS Blue Sea Dual Battery Bank Management Panel Main + 3 Position
Brand: NAVICO GROUP AMERICAS LLC
SKU: SPPJBD2LAJ
Price: 194.70 USD
Availability: InStock

MFG No: 8080-BSS
SKU No: SPPJBD2LAJ
UPC: 632085080808
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 2
Condition: New

$194.70

Blue Sea Dual Battery Bank Management Panel

Model: 8080-BSS

Isolates the Engine circuit from the House circuit
Allows emergency cross connect between isolated battery banks
Protects electronics from sags and spikes caused by engine cranking

Specifications
Maximum Voltage

32V DC
Continuous Rating	300A
Intermittent Rating	500A (5 min)
Cranking Rating 10 sec	1500A
Cranking Rating 1 min	775A
Height	6.50in (165.1 mm)
Width	5.25in (133.35 mm)
Depth	3.00in (76.2 mm)
Weight	2.20lb (1 kg)
