Mastervolt DC Master 24/12-3A 24VDC To 13.6 Vdc - 3A

Name: 81400100 Mastervolt DC Master 24/12-3A 24VDC To 13.6 Vdc - 3A
Brand: NAVICO GROUP AMERICAS LLC
SKU: KLGEXH2VK2
Price: 59.75 USD
Availability: InStock

MFG No: 81400100
SKU No: KLGEXH2VK2
UPC: 816882020803
MFG. Name: NAVICO GROUP AMERICAS LLC
Available: 1
Condition: New

$59.75

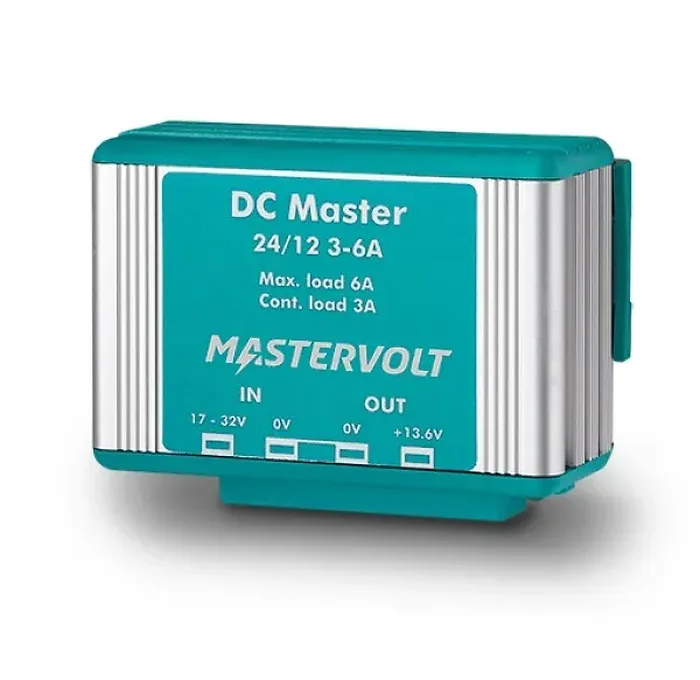

Mastervolt DC master 24/12-3A DC-DC Converter, Non-Isolated

Model: 81400100

Recreational and semi-professional use.
Easy to install using included mounting bracket, screws and fasteners.
Smart electronics mean no unnecessary heat generation.
Continuous output.
Two minutes of extra power for short power boosts.

Specifications
Nominal output voltage

13.6 V
Max. output power	82W
Nominal output power	41W
Max. output current (for 2 min. intervals)	6A
Continuous output current	3A
Nominal input voltage	24V
Input voltage range	20-32V
Galvanic isolation	No
Stabilised	Yes
Approvals	CE, E-mark
Technical Specification
DC consumption	< 10 mA
Connections	Fast-on
Temperature range (ambient temp.)	-13 degF to 176 degF
Sound level	< 30 dBA at 1 mtr
Protection degree	IP53
Cooling	Natural cooling
Dimensions	2.6 x 3.4 x 2.0 inch
