All plugs are manufactured to comply with FCC 86 guidelines and are UL listed.
IDEAL modular plugs are capable of supporting the latest EIA/TIA cable system performance categories when installed in compliance with appropriate EIA/TIA standards and methods.
The position and contact configurations cover the popular styles.
Includes plugs for round cable with solid conductors and plugs for flat cable and stranded conductors.

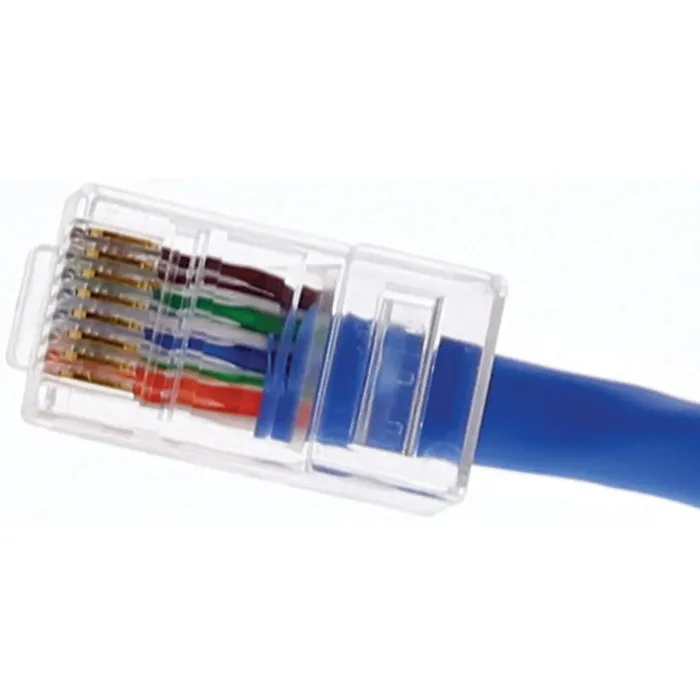

• 8 position, 8 contact RJ45 modular plugs for CAT-5E, 100 ohm balanced twisted pair 100 MHz cables;• Complies with industry-standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports;• Designed and manufactured to support all 100 ohm cable wiring schemes including the widely used TIA-568A and TIA-568B configurations;• Designed to work seamlessly with IDEAL(R) Telemaster(TM) and FT-45(TM) crimping tools; also compatible with industry-standard modular plug crimping tools meeting specifications;• Non-feed-through design to prevent external conductor/device shorting and RF signal leakage;• 3-prong contact design for use with solid or stranded 24 to 26 AWG insulated copper conductors;• 50 micro-in. gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles;• Permanent connection--once crimped they cannot be reused;• Primary and secondary strain relief supports to retain cable jacket and minimize conductor movement once crimped;• Bag of 100;
